APTM50HM75STG - Microsemi Corporation

Description: MOSFET 4N-CH 500V 46A SP4

Download APTM50HM75STG Model

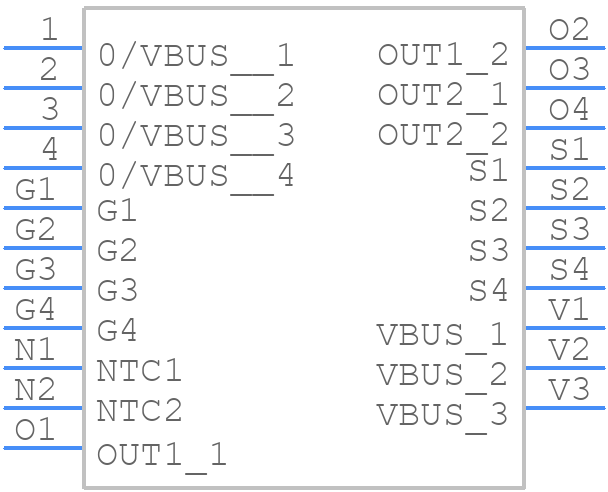

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

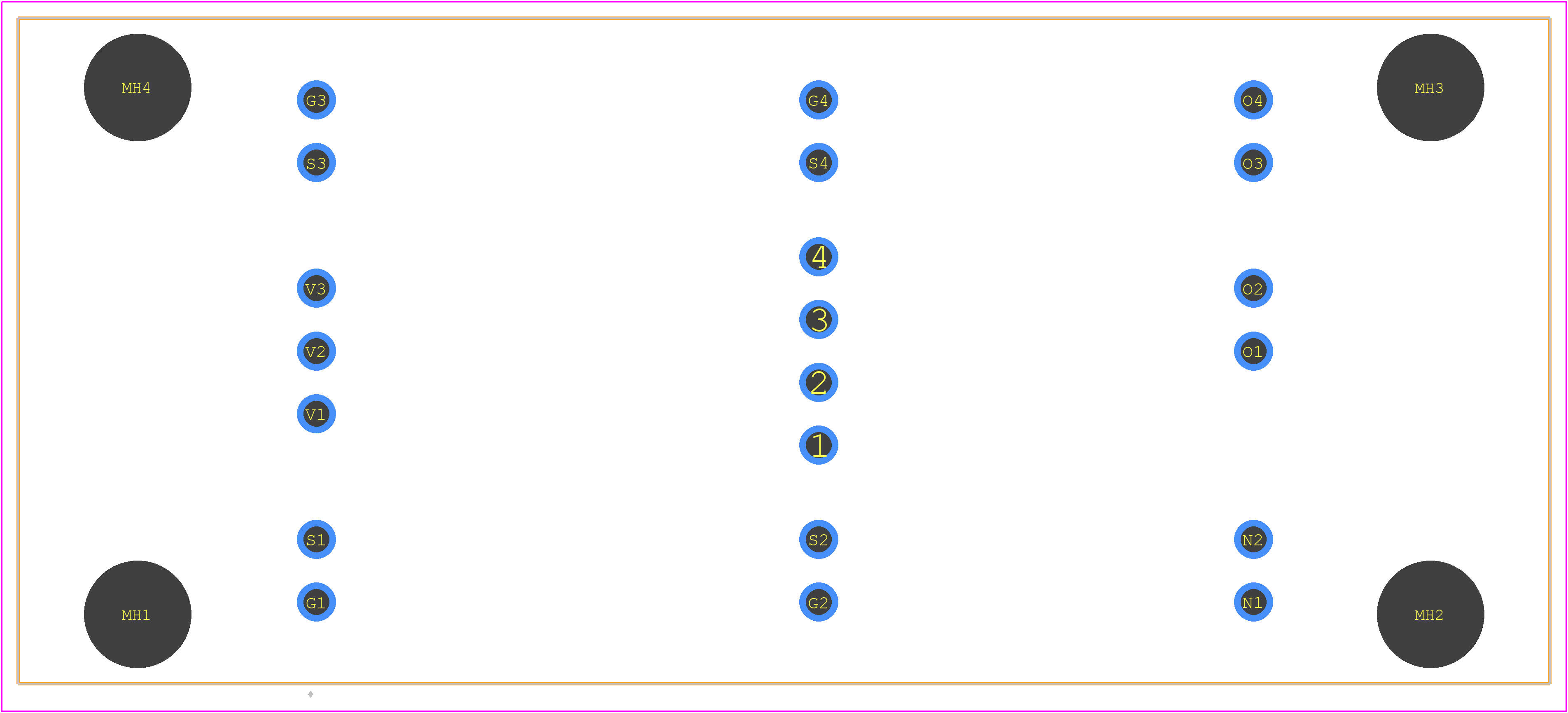

PCB Footprints
APTM50HM75STG - Microsemi Corporation PCB footprint - Other - Other - APTM50HM75STG-4
click to zoom
3D Models
APTM50HM75STG - Microsemi Corporation  - 3D model - Other - APTM50HM75STG-4
click to zoom

APTM50HM75STG Details

  • Manufacturer Part Number:

    APTM50HM75STG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, MODULE-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    2500 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    500 V

  • Drain Current-Max (ID):

    46 A

  • Drain-source On Resistance-Max:

    0.09 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XUFM-X14

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    184 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

APTM50HM75STG Frequently Asked Questions (FAQs)

  • Microsemi recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
  • Implement a robust thermal management system, ensure good airflow, and consider using a heat sink or thermal interface material. Also, follow the recommended derating guidelines for high-temperature operation.
  • Handle the device with ESD-sensitive precautions, such as using an ESD wrist strap or mat. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
  • The APTM50HM75STG is not specifically designed for radiation-hardened or high-reliability applications. However, Microsemi offers other products that are designed for such applications. Consult with Microsemi's sales team or application engineers for guidance.
  • Follow the recommended soldering profile and assembly guidelines in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and ensure the device is properly aligned and secured during assembly.
