AQ2A2-C2-ZT12VDC - Panasonic

Description: SIL type with 9 mm thickness, 3,000 V AC high dielectric voltage, controls up to 2 A/3 A

Download AQ2A2-C2-ZT12VDC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

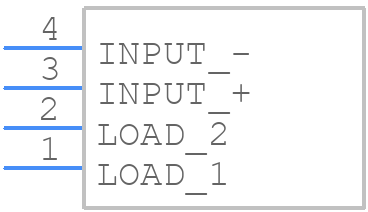

AQ2A2-C2-ZT12VDC - Panasonic - PCB symbol
click to zoom
PCB Footprints

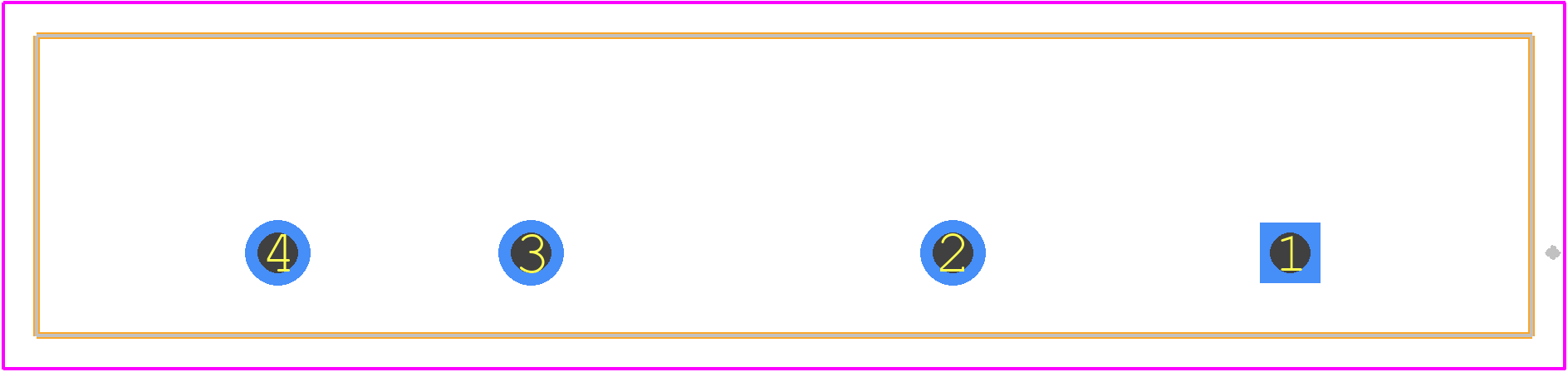

AQ2A2-C2-ZT12VDC - Panasonic PCB footprint - Other - Other - AQ8_2A_7.62
click to zoom
3D Models
AQ2A2-C2-ZT12VDC - Panasonic - 3D model - Other - AQ8_2A_7.62
click to zoom

AQ2A2-C2-ZT12VDC Details

  • Manufacturer Part Number:

    AQ2A2-C2-ZT12VDC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    HIGH RELIABILITY, UL RECOGNIZED, WITH SNUBBER CIRCUIT, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Isolation Voltage-Max:

    3000 V

  • Number of Elements:

    1

  • On-State Current-Max:

    2 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Packing Method:

    BOX

AQ2A2-C2-ZT12VDC Frequently Asked Questions (FAQs)

  • The operating temperature range for the AQ2A2-C2-ZT12VDC relay module is -40°C to 85°C.
  • Yes, the AQ2A2-C2-ZT12VDC relay module is designed to withstand vibrations up to 10-55 Hz, 1.5 mm double amplitude, and 10-2000 Hz, 10 G acceleration.
  • The maximum switching current is 2 A, and the maximum switching voltage is 12 VDC.
  • No, the AQ2A2-C2-ZT12VDC relay module is not designed for use in safety-critical applications. It is intended for general-purpose use only.
  • Yes, the AQ2A2-C2-ZT12VDC relay module is designed to operate in environments with up to 85% relative humidity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQ2A2-C2-ZT12VDC Overview

Use the download button to access the AQ2A2-C2-ZT12VDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQ2A2, or try a keyword search, such as Solid State Relays
