Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent damage to the relay.
To handle inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure that the power supply can handle the inrush current and that the relay is properly derated for the application.
The maximum switching frequency is not explicitly stated in the datasheet, but it's generally recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and prevent overheating. Higher frequencies may be possible, but require careful evaluation and testing.
While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management in high-temperature environments. Ensure that the relay is properly heat-sinked, and the ambient temperature is within the recommended range to prevent premature failure.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider the relay's emissions and susceptibility to electromagnetic interference (EMI) in your design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQ3A2-C1-ZT12VDC Overview

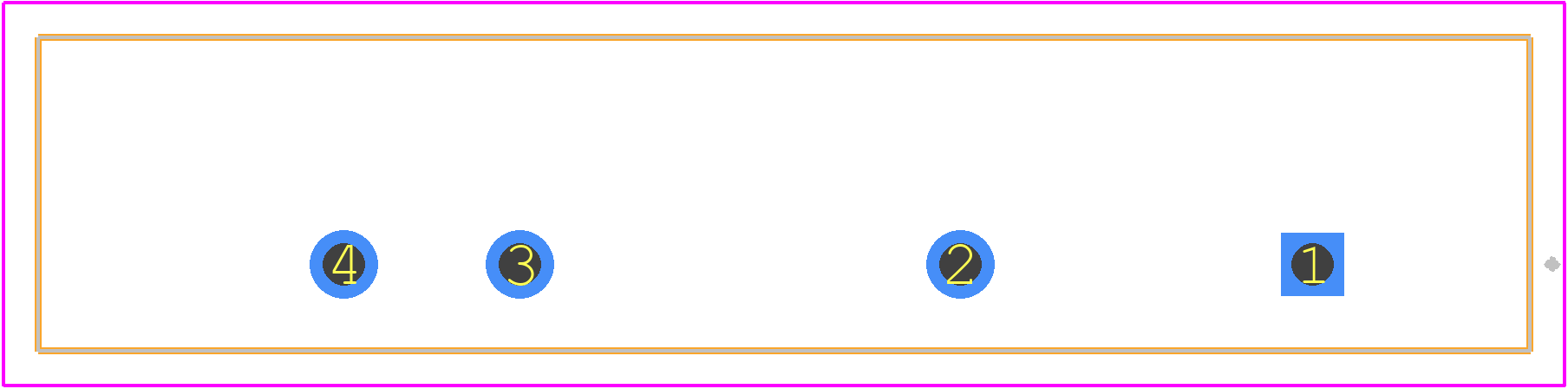

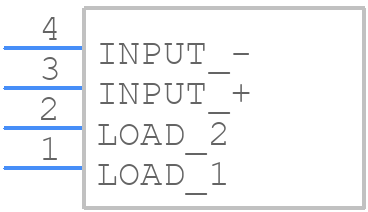

Use the download button to access the AQ3A2-C1-ZT12VDC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQ3A2,
or try a keyword search, such as Solid State Relays
