Store AQH0223A in a cool, dry place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposure to direct sunlight, moisture, and extreme temperatures.
Handle AQH0223A by the body, avoiding touching the pins or electrical components. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Avoid bending, flexing, or applying excessive force to the component.
Solder AQH0223A at a temperature of 250°C (max) for 3-5 seconds (max) using a soldering iron with a temperature-controlled tip. Avoid overheating or applying excessive force, which can damage the component.
AQH0223A is designed to withstand moderate vibrations. However, for high-vibration environments, consider using additional mounting or securing methods to ensure the component remains securely in place.
Yes, AQH0223A is compatible with lead-free soldering processes. However, ensure the soldering temperature and time are within the recommended specifications to prevent damage to the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQH0223A Overview

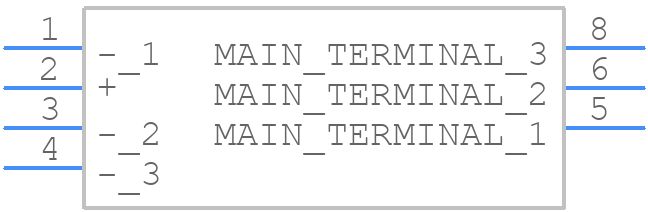

Use the download button to access the AQH0223A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH02,
or try a keyword search, such as Solid State Relays
