Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and minimize thermal and electrical stress.
The AQH0223AX has a specified coil voltage and current rating. Ensure your design provides a stable voltage supply and current limiting to prevent overheating or damage to the relay. You may need to add voltage regulators, resistors, or current-limiting components to your design.
While the datasheet provides general guidelines, the maximum switching frequency depends on the specific application and environmental conditions. As a general rule, it's recommended to limit switching frequencies to 1-2 Hz to prevent overheating and ensure relay longevity.
Regularly cleaning the relay's contacts with a soft brush or a cotton swab can help remove contaminants. Additionally, consider using a relay with a hermetically sealed or sealed contact structure to minimize exposure to environmental factors.
The relay's thermal performance is critical. Ensure good airflow around the relay, and consider using thermal pads or heat sinks to dissipate heat. Also, be mindful of the relay's power rating and avoid overheating, which can lead to premature failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQH0223AX Overview

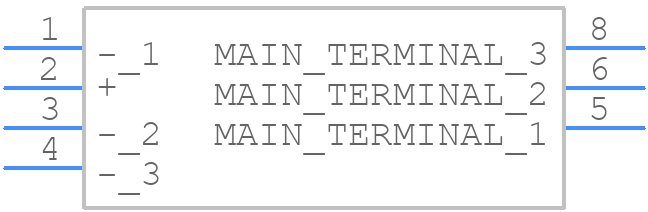

Use the download button to access the AQH0223AX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH02,
or try a keyword search, such as Solid State Relays
