AQH2213AX - Panasonic

Description: Solid State Relay 50mA 1.3V DC-IN 0.9A 600V AC-OUT 7-Pin DIP SMD T/R

Download AQH2213AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

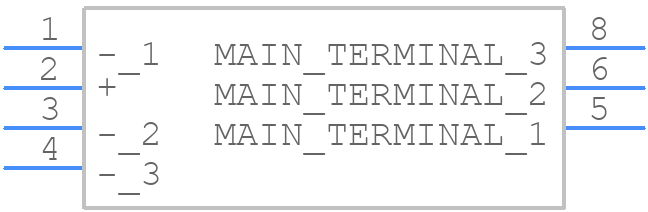

AQH2213AX - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH2213AX - Panasonic PCB footprint - Other - Other - AQH_A
click to zoom
3D Models
AQH2213AX - Panasonic - 3D model - Other - AQH_A
click to zoom

AQH2213AX Details

  • Manufacturer Part Number:

    AQH2213AX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

AQH2213AX Frequently Asked Questions (FAQs)

  • The recommended storage condition for AQH2213AX is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight or near heat sources.
  • Handle the AQH2213AX with an anti-static wrist strap or mat, and avoid touching the pins or components. Use an ESD-safe container for storage and transportation.
  • The maximum allowable voltage for the AQH2213AX is 50V. Exceeding this voltage may cause damage to the device.
  • The AQH2213AX is rated for operation up to 85°C. However, it's recommended to derate the voltage and current according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Use a soldering iron with a temperature of 350°C or lower, and avoid applying excessive force or pressure to the device. Follow the recommended soldering profile and use a solder with a melting point below 220°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQH2213AX Overview

Use the download button to access the AQH2213AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH22, or try a keyword search, such as Solid State Relays
