AQH2213AZ - Panasonic

Description: Solid State Relays - PCB Mount AC 600 V Zero Cross 0.9A SMD

Download AQH2213AZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

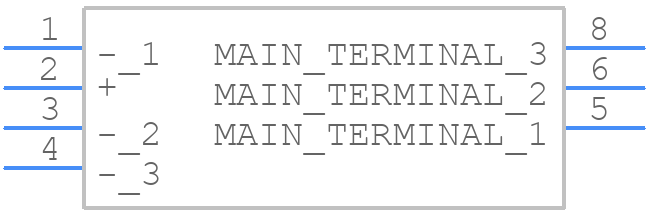

AQH2213AZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH2213AZ - Panasonic PCB footprint - Other - Other - AQH_A
click to zoom
3D Models
AQH2213AZ - Panasonic - 3D model - Other - AQH_A
click to zoom

AQH2213AZ Details

  • Manufacturer Part Number:

    AQH2213AZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES

AQH2213AZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQH2213AZ involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and EMI.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary.
  • The limited surge current rating of the AQH2213AZ means that it may not be suitable for applications with high inrush currents. Engineers should consider adding external protection devices or using a different component with a higher surge current rating.
  • Yes, the AQH2213AZ can be used in switching power supply applications, but engineers should ensure that the component is properly snubbed to prevent voltage spikes and ringing.
  • To troubleshoot issues with the AQH2213AZ, engineers should check the PCB layout, ensure proper thermal management, and verify that the component is operated within its recommended specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQH2213AZ Overview

Use the download button to access the AQH2213AZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQH22, or try a keyword search, such as Solid State Relays
