AQH3213AZ - Panasonic

Description: Solid State Relays - PCB Mount AC 600 V Zero Cross 1.2A SMD

Download AQH3213AZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

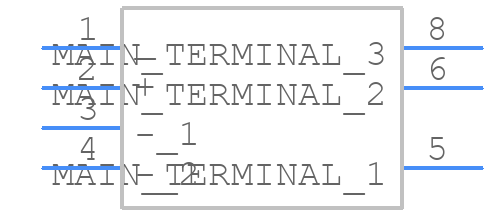

AQH3213AZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQH3213AZ - Panasonic PCB footprint - Other - Other - AQH_A
click to zoom
3D Models
AQH3213AZ - Panasonic - 3D model - Other - AQH_A
click to zoom

AQH3213AZ Details

  • Manufacturer Part Number:

    AQH3213AZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, WITH ZERO CROSS OVER CIRCUIT

  • Configuration:

    SINGLE

  • Control Current:

    0.015 A

  • Control Voltage:

    1.21 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    AC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    DIAC

  • Overall Height:

    3.4 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TR

  • Surface Mount:

    YES
