Technical Content
Part Image

AQW210A - Panasonic

Description: PANASONIC - AQW210A - MOSFET Relay, DPST-NO, 120 mA, Gull Wing, 350 V, 35 ohm, 1.5 kV

Download AQW210A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

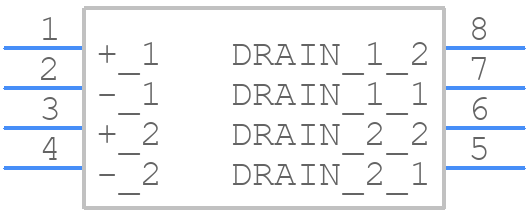

AQW210A - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQW210A - Panasonic PCB footprint - Other - Other - DIP8_SurfaceMount
click to zoom
3D Models
AQW210A - Panasonic - 3D model - Other - DIP8_SurfaceMount
click to zoom

AQW210A Details

  • Manufacturer Part Number:

    AQW210A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    HIGH SENSITIVITY

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    1500 V

  • Number of Elements:

    2

  • On-State Current-Max:

    0.14 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TUBE

AQW210A Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQW210A involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and parasitic inductance.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet, and use a stable voltage source with minimal ripple and noise.
  • The AQW210A can operate safely within a temperature range of -40°C to 125°C, but optimal performance is typically achieved between 0°C to 85°C.
  • Yes, the AQW210A is designed for high-reliability applications and meets various safety and regulatory standards, including AEC-Q100 and IEC 60664-1.
  • Common issues with the AQW210A can often be resolved by checking the PCB layout, ensuring proper biasing, and verifying the input and output impedance matching.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQW210A Overview

Use the download button to access the AQW210A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW21, or try a keyword search, such as Solid State Relays
