Panasonic recommends a PCB layout with a minimum of 1.6 mm clearance around the component, and a land pattern with a 0.5 mm width and 1.2 mm length for optimal thermal and electrical performance.
The AQW216A is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI) through its internal shielding and grounding structure. However, additional external shielding and filtering may be necessary depending on the specific application and environment.
The AQW216A is rated for operation from -40°C to 125°C, but derating may be necessary for high-temperature applications. Consult the datasheet and Panasonic's application notes for specific guidance.
Yes, the AQW216A is designed for high-reliability applications and meets various industry standards for safety and reliability. However, additional testing and validation may be necessary for specific safety-critical applications.
Store the AQW216A in a dry, cool place away from direct sunlight and moisture. Handle the component by the body, avoiding touching the leads or electrical contacts to prevent damage or contamination.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW216A Overview

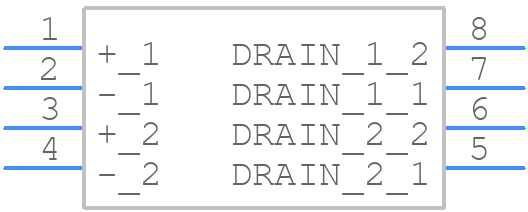

Use the download button to access the AQW216A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW21,
or try a keyword search, such as Solid State Relays
