Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The AQW217AX has a high power dissipation rating, so it's crucial to implement proper thermal management. This can be achieved through the use of thermal vias, heat sinks, and thermal interface materials. Ensure that the PCB design and layout allow for efficient heat dissipation.
Panasonic recommends following the JEDEC J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is 240°C ± 5°C for 3.5 seconds ± 0.5 seconds. It's essential to follow these guidelines to prevent damage to the device.
To ensure reliability and longevity, follow Panasonic's recommended operating conditions, storage conditions, and handling guidelines. Additionally, implement proper PCB design, layout, and manufacturing practices, such as using high-quality components and materials.
The AQW217AX has a human body model (HBM) ESD rating of 2 kV. To prevent ESD damage, handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Follow proper handling and storage procedures to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW217AX Overview

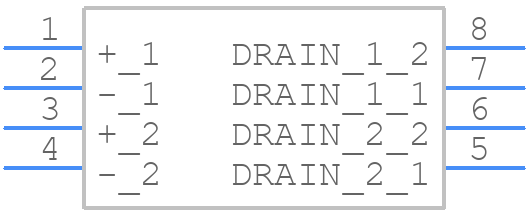

Use the download button to access the AQW217AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW21,
or try a keyword search, such as Solid State Relays
