Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and to prevent soldering issues.
To prevent damage, handle the AQW217AZ by the body, avoiding touching the leads or the chip. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
While the datasheet specifies the maximum rated voltage, it's essential to note that the AQW217AZ can withstand a maximum voltage of 1.5 times the rated voltage for a short duration (less than 1 second). However, it's recommended to operate the device within the specified voltage range to ensure reliability and prevent damage.
To determine the power dissipation, calculate the total power loss (PT) using the formula: PT = I²R, where I is the current and R is the resistance. Then, use the thermal resistance (Rth) value from the datasheet to calculate the junction temperature (Tj). Ensure the Tj is within the specified range by providing adequate heat sinking and thermal management.
Yes, Panasonic recommends using a soldering iron with a temperature-controlled tip, and the soldering temperature should be between 250°C to 260°C. The soldering time should be less than 3 seconds, and the device should be soldered in a nitrogen atmosphere to prevent oxidation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW217AZ Overview

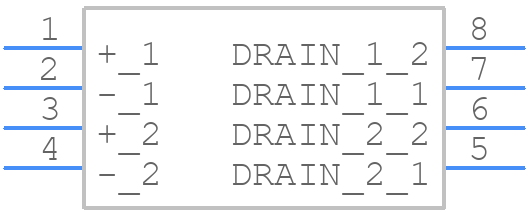

Use the download button to access the AQW217AZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW21,
or try a keyword search, such as Solid State Relays
