A good PCB layout for AQW414 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines, provide adequate heat sinking, and ensure good airflow around the device.
When handling AQW414, it's essential to follow proper ESD precautions, avoid touching the pins, and use an anti-static wrist strap or mat to prevent damage from static electricity.
Yes, AQW414 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed, and the input and output capacitors are selected to minimize ringing and oscillation.
To troubleshoot issues with AQW414, start by checking the input voltage, output voltage, and current. Verify that the device is properly mounted and that the thermal interface material is applied correctly. Also, check for any signs of physical damage or contamination.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW414 Overview

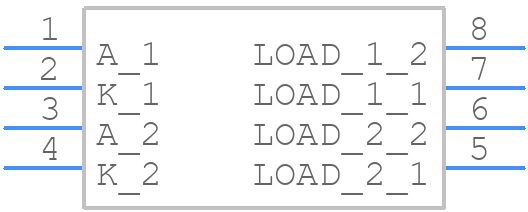

Use the download button to access the AQW414 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW41,
or try a keyword search, such as Solid State Relays
