A good PCB layout for AQW414A involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary.
When handling AQW414A, it's essential to follow proper electrostatic discharge (ESD) precautions, avoid touching the pins, and handle the device by the body or pins to prevent damage.
Yes, AQW414A can be used in switching power supply applications, but it's essential to ensure that the device is operated within its recommended specifications and that the circuit is designed to minimize electromagnetic interference (EMI).
To troubleshoot issues with AQW414A, start by checking the input and output voltages, ensuring that the device is operated within its recommended specifications, and verifying that the PCB layout is correct.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW414A Overview

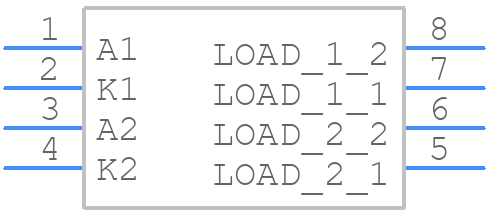

Use the download button to access the AQW414A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW41,
or try a keyword search, such as Solid State Relays
