Part Image

AQW414EH - Panasonic

Description: Solid State Relays - PCB Mount 100MA 400V 8PIN DPST-NC

Download AQW414EH Model

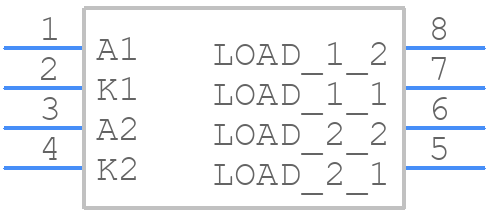

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQW414EH - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom
3D Models
AQW414EH - Panasonic  - 3D model - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom

AQW414EH Details

  • Manufacturer Part Number:

    AQW414EH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    1999-01-01

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.0013 A

  • Control Voltage:

    1.14 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    AC/DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.1 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.2 mm

  • Overall Length:

    9.86 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

AQW414EH Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
  • To handle the high inrush current, it's recommended to use a suitable current limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting features.
  • The maximum allowable voltage drop across the relay contacts is typically around 100-200 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan. Ensure that the relay is operated within the specified voltage range and that the contact resistance is monitored.
  • While the AQW414EH relay has a high operating temperature range (-40°C to 125°C), it's essential to consider the derating factors and ensure that the relay is not exposed to temperatures above the specified range. Additionally, consider the relay's power dissipation and thermal management in high-temperature environments.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider the relay's electromagnetic emissions and susceptibility. Additionally, perform EMC testing and validation to ensure compliance with relevant standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQW414EH Overview

Use the download button to access the AQW414EH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW41, or try a keyword search, such as Solid State Relays
