AQW454AX - Panasonic

Description: Solid State Relays - PCB Mount 400v 120mA DIP Form B Norm-Clsd

Download AQW454AX Model

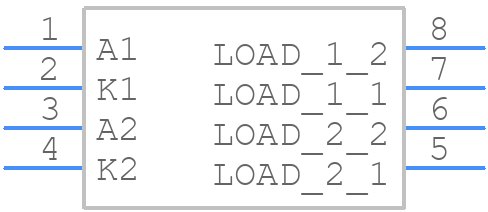

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQW454AX - Panasonic PCB footprint - Other - Other - DIP8_SurfaceMount
click to zoom
3D Models
AQW454AX - Panasonic  - 3D model - Other - DIP8_SurfaceMount
click to zoom

AQW454AX Details

  • Manufacturer Part Number:

    AQW454AX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    HIGH SENSITIVITY

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    1500 V

  • Number of Elements:

    2

  • On-State Current-Max:

    0.16 A

  • On-state Resistance-Max:

    16 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR
