Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure the relay operates within its specified temperature range, make sure to provide adequate heat dissipation, avoid overheating, and keep the relay away from high-temperature sources. Also, consider using a heat sink or thermal interface material if necessary.
The recommended drive circuit for the AQW610EHA relay typically consists of a transistor or FET switch, a diode for back-EMF protection, and a current-limiting resistor. The specific circuit design may vary depending on the application and required switching speed.
To handle the inrush current when switching on the AQW610EHA relay, consider using a soft-start circuit or a current-limiting device to reduce the inrush current. This can help prevent damage to the relay and other components in the circuit.
When using the AQW610EHA relay in a high-vibration or high-shock environment, consider using additional mechanical support or mounting methods to secure the relay. Also, ensure that the PCB is designed to withstand the vibrations and shocks, and that the relay is properly soldered and secured to the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW610EHA Overview

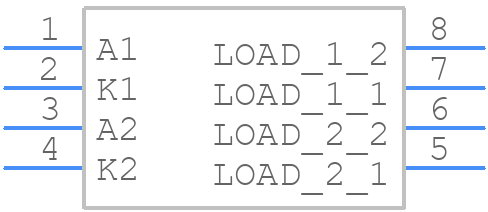

Use the download button to access the AQW610EHA schematic symbol and PCB footprint.
