AQW612EH - Panasonic

Description: PANASONIC - AQW612EH - MOSFET Relay, SPST-NO, SPST-NC, 500 mA, Through Hole, 60 V, 2.5 ohm, 5 kV

Download AQW612EH Model

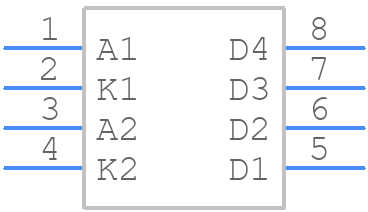

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQW612EH - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom
3D Models
AQW612EH - Panasonic  - 3D model - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom

AQW612EH Details

  • Manufacturer Part Number:

    AQW612EH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    4

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Input Type:

    AC/DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    2.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.9 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

AQW612EH Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • Monitor the relay's temperature, current, and voltage ratings. Ensure the PCB design provides adequate thermal dissipation, and consider adding heat sinks or thermal interfaces if necessary.
  • Follow Panasonic's recommended soldering conditions: peak temperature 260°C, soldering time ≤ 3 seconds, and preheating to 120°C to 150°C. Avoid excessive soldering temperatures and times to prevent damage.
  • Implement proper shielding, grounding, and filtering techniques to minimize EMI. Ensure the relay is placed in a shielded area, and use EMI filters or common-mode chokes to reduce emissions.
  • The AQW612EH is designed for general-purpose applications. For high-vibration or high-shock environments, consider using relays with enhanced mechanical robustness, such as those designed for automotive or industrial applications.
