Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent damage to the relay.
To handle the high inrush current, it's recommended to use a suitable current limiting resistor, inrush current limiter, or a soft-start circuit to reduce the stress on the relay and the power supply.
The AQY2C5R3P relay is rated for 100,000 cycles minimum at 10A, 250VAC. However, the actual number of operations may vary depending on the application, environment, and usage. It's essential to consider the relay's lifespan and plan for replacement or maintenance accordingly.
The relay is rated for operation up to 85°C. However, it's recommended to derate the relay's current and voltage ratings when operating in high-temperature environments to ensure reliable operation and prevent premature failure.
To ensure EMC, follow proper PCB design and layout practices, use shielding, and implement filtering or shielding on the relay's input and output lines. Additionally, consider using a relay with built-in EMC features, such as Panasonic's AQY series, which has built-in surge protection and EMI filtering.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQY2C5R3P Overview

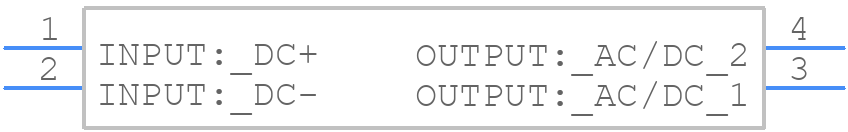

Use the download button to access the AQY2C5R3P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQY2C,
or try a keyword search, such as Solid State Relays
