AQZ204 - Panasonic

Description: RELAY AQZ204

Download AQZ204 Model

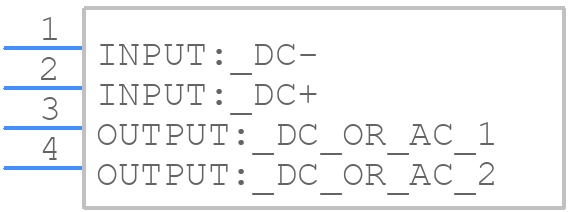

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQZ204 - Panasonic PCB footprint - Other - Other - AQZ202-1
click to zoom
3D Models
AQZ204 - Panasonic  - 3D model - Other - AQZ202-1
click to zoom

AQZ204 Details

  • Manufacturer Part Number:

    AQZ204

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    0.5 A

  • On-state Resistance-Max:

    3.2 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    BOX

AQZ204 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AQZ204 involves placing the device near the power source, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
  • To ensure the AQZ204 is properly biased, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended operating range.
  • The maximum current rating for the AQZ204 is 100mA. Exceeding this rating may cause the device to overheat or fail.
  • The AQZ204 is rated for operation up to 85°C. However, it's recommended to derate the device's performance and consider thermal management strategies when operating in high-temperature environments.
  • To troubleshoot issues with the AQZ204, start by verifying the power supply voltage, checking for proper biasing, and ensuring the input signals are within the recommended operating range. Use an oscilloscope to monitor the output signals and look for signs of oscillation or instability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQZ204 Overview

Use the download button to access the AQZ204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQZ20, or try a keyword search, such as Solid State Relays
