AQZ206G2 - Panasonic

Description: Solid State Relays - PCB Mount 600V 1.0A SIL4-pin PhotoMOS

Download AQZ206G2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

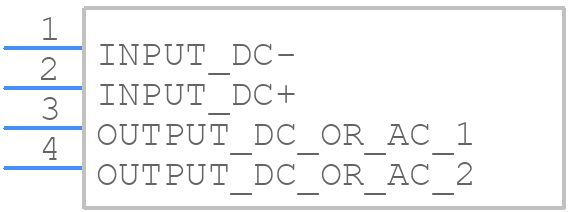

Symbol
AQZ206G2 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQZ206G2 - Panasonic PCB footprint - Other - Other - AQZ202G-2
click to zoom
3D Models
AQZ206G2 - Panasonic - 3D model - Other - AQZ202G-2
click to zoom

AQZ206G2 Details

  • Manufacturer Part Number:

    AQZ206G2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Forward Current-Max:

    0.03 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    1 A

  • On-state Resistance-Max:

    0.8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    BOX

AQZ206G2 Frequently Asked Questions (FAQs)

  • The recommended storage condition for AQZ206G2 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight or near heat sources.
  • Handle the AQZ206G2 with an anti-static wrist strap or mat, and avoid touching the pins or components. Use an ESD-safe workstation and follow proper ESD handling procedures.
  • The maximum allowable voltage for AQZ206G2 is 250V AC. Exceeding this voltage may cause damage to the component.
  • AQZ206G2 is rated for operation up to 125°C. However, it's recommended to derate the component's performance and consider thermal management strategies for high-temperature applications.
  • Use a soldering iron with a temperature range of 200°C to 250°C. Apply a small amount of solder paste or flux, and solder the component within 3 seconds to avoid overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQZ206G2 Overview

Use the download button to access the AQZ206G2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQZ20, or try a keyword search, such as Solid State Relays
