AQZ404 - Panasonic

Description: Solid State Relays - PCB Mount 0.5 A 400V SPST-NC

Download AQZ404 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

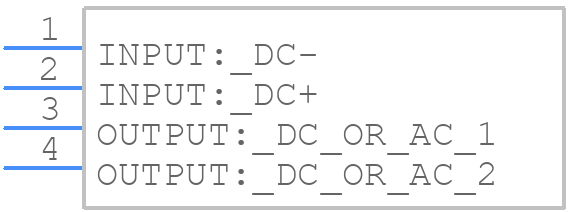

AQZ404 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQZ404 - Panasonic PCB footprint - Other - Other - AQZ404
click to zoom
3D Models
AQZ404 - Panasonic - 3D model - Other - AQZ404
click to zoom

AQZ404 Details

  • Manufacturer Part Number:

    AQZ404

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.001 A

  • Control Voltage:

    1.16 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    0.5 A

  • On-state Resistance-Max:

    4 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    12.5 mm

  • Overall Length:

    21 mm

  • Packing Method:

    BOX

AQZ404 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AQZ404 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces to reduce noise and electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The recommended operating voltage is between 4.5V and 5.5V. Additionally, decouple the VCC pin with a 0.1uF capacitor to reduce noise.
  • The maximum allowable power dissipation for the AQZ404 is 250mW. Exceeding this limit can cause the device to overheat, leading to reduced performance or even damage.
  • To protect the AQZ404 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the PCB is designed with ESD protection in mind, and consider adding ESD protection diodes or resistors to the input pins.
  • The recommended storage temperature range for the AQZ404 is -40°C to 125°C. Storing the device outside this range can affect its performance or reduce its lifespan.
