Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The ARA200A03Z has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines. Additionally, consider using thermal interface materials and thermal vias on the PCB.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. It's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance.
The ARA200A03Z is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or clamp, to secure the device. Consult Panasonic's application notes for more information.
Follow Panasonic's recommended soldering and mounting guidelines, including the use of a soldering iron with a temperature range of 350°C to 380°C, and a soldering time of 3 seconds to 5 seconds. Ensure the device is properly aligned and secured to the PCB to prevent damage or electrical issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA200A03Z Overview

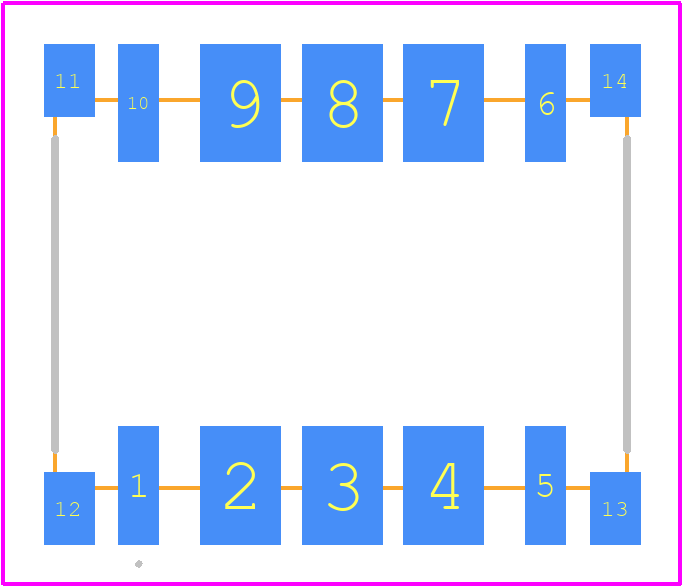

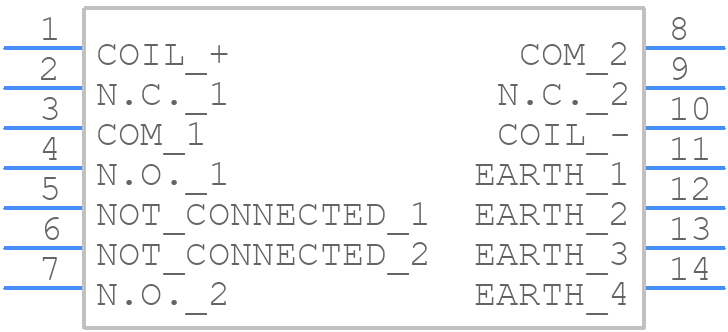

Use the download button to access the ARA200A03Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA20,
or try a keyword search, such as RF Relays
