Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The ARA200A05X has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The derating curve is not explicitly provided in the datasheet, but it can be obtained from Panasonic's support team or application engineers. The derating curve shows how the maximum current rating decreases with increasing ambient temperature, ensuring safe operation within the device's thermal limits.
While the ARA200A05X is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic provides guidelines for vibration and shock testing, and it's recommended to consult with their application engineers for specific guidance.
Follow Panasonic's recommended soldering and assembly guidelines, including the use of a soldering iron with a temperature range of 350°C to 370°C, and a soldering time of 3 seconds to 5 seconds. Ensure the component is properly aligned and secured to the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA200A05X Overview

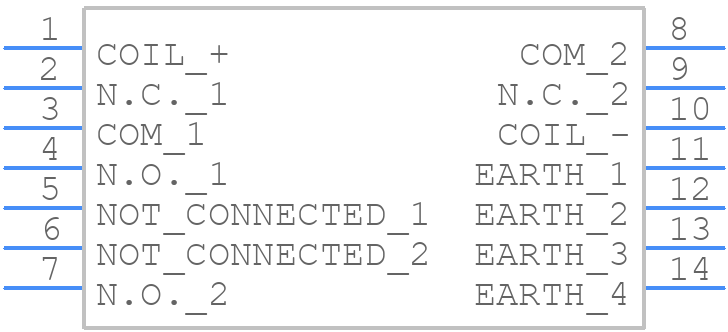

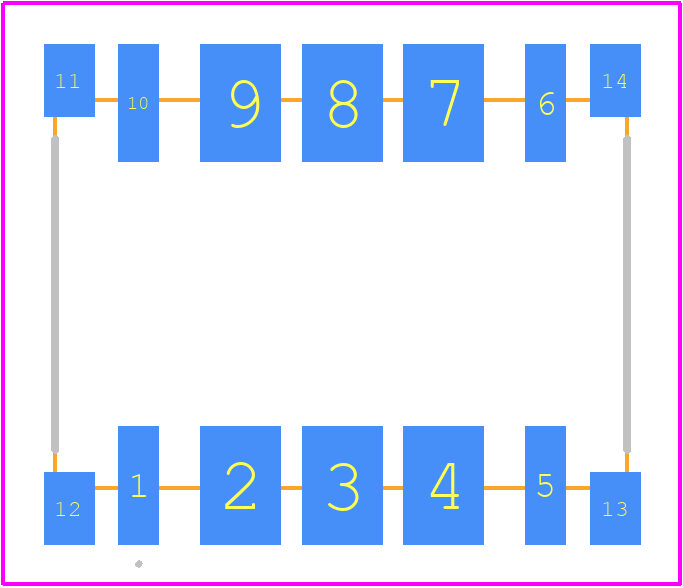

Use the download button to access the ARA200A05X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA20,
or try a keyword search, such as RF Relays
