ARA200A12Z - Panasonic

Description: 1 GHz capable, 3 W carrying power (at 1 GHz), 50 Ω, 2 Form C relays

Download ARA200A12Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

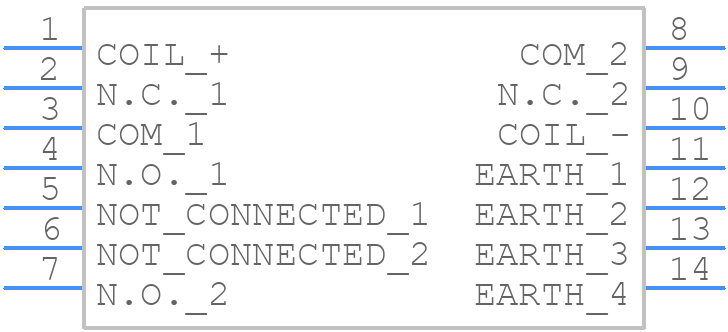

ARA200A12Z - Panasonic - PCB symbol
click to zoom
PCB Footprints

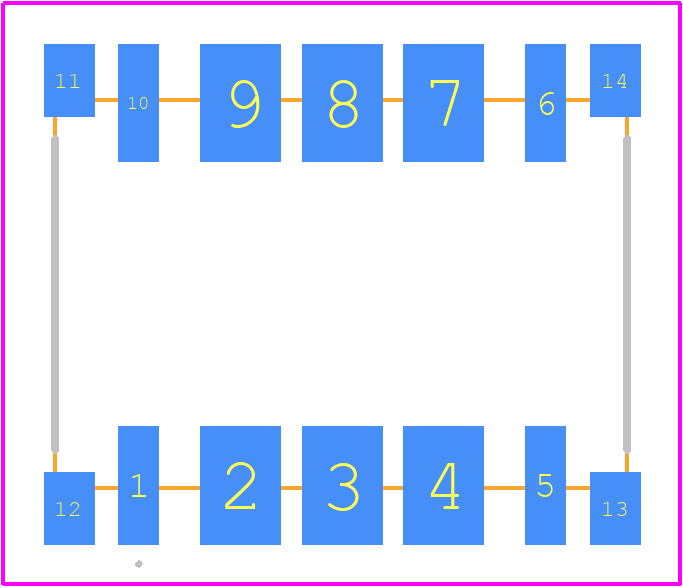

ARA200A12Z - Panasonic PCB footprint - Other - Other - ARA2X
click to zoom
3D Models
ARA200A12Z - Panasonic - 3D model - Other - ARA2X
click to zoom

ARA200A12Z Details

  • Manufacturer Part Number:

    ARA200A12Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8.2

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9.7 mm

  • Body Height:

    5.9 mm

  • Body Length or Diameter:

    14.7 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.012 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    1028 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@30VDC

  • Contact Resistance:

    75 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    Silver Palladium

  • End Contact Plating:

    GOLD

  • Input Power-Max:

    3 W

  • Input Switching Control Type:

    Random

  • Insertion Loss-Max:

    0.3 dB

  • Insulation Resistance:

    100000000 Ω

  • Isolation-Max:

    20 dB

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Terminals:

    10

  • Operate Time:

    4 ms

  • Operating Frequency-Max:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14.7mm x 9.7mm x 5.9mm

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Switching Time:

    8 ms

  • Termination Type:

    SOLDER

  • VSWR:

    1.2

ARA200A12Z Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. The recommended layout ensures proper heat dissipation and minimizes the risk of electrical noise and interference.
  • To ensure reliable switching performance in high-temperature environments, it's essential to follow proper derating guidelines for the relay's coil voltage and current. Additionally, consider using a relay with a high-temperature rating, such as the ARA200A12Z, which is rated for operation up to 125°C.
  • The maximum allowable voltage drop across the relay contacts is typically specified as 0.5V to 1.0V, depending on the application and the relay's contact material. For the ARA200A12Z, the recommended voltage drop is 0.5V. Exceeding this value may lead to contact degradation and reduced relay lifespan.
  • Yes, the ARA200A12Z is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's essential to ensure proper mounting and securing of the relay to the PCB or chassis to prevent damage or dislodging during vibration.
  • The recommended coil suppression method for the ARA200A12Z is to use a diode (e.g., 1N4007) in parallel with the coil to absorb back-EMF during switching. This helps to reduce electromagnetic interference (EMI) and prevent damage to the relay or surrounding components.
