A good PCB layout for the ARA210A03 should consider the following: keep the input and output traces as short as possible, use a solid ground plane, and separate the analog and digital grounds. Additionally, place decoupling capacitors close to the device and use a low-ESR capacitor for the power supply.
To ensure proper biasing, follow these steps: connect the VCC pin to a stable 5V power supply, connect the VEE pin to a stable -5V power supply, and set the VREF pin to a voltage between 2.5V and 4.5V. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
The ARA210A03 can operate within a temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
To handle ESD protection, follow these guidelines: handle the device by the body or pins, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container. Additionally, consider adding ESD protection diodes or resistors to the PCB design.
The recommended soldering temperature for the ARA210A03 is between 230°C to 250°C, and the soldering time should not exceed 3 seconds. It's also recommended to use a soldering iron with a temperature control and a solder with a low melting point.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA210A03 Overview

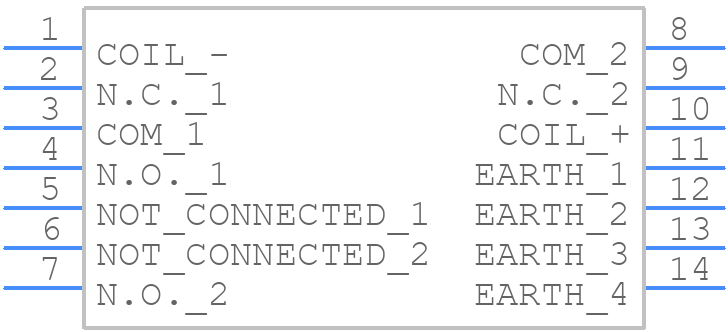

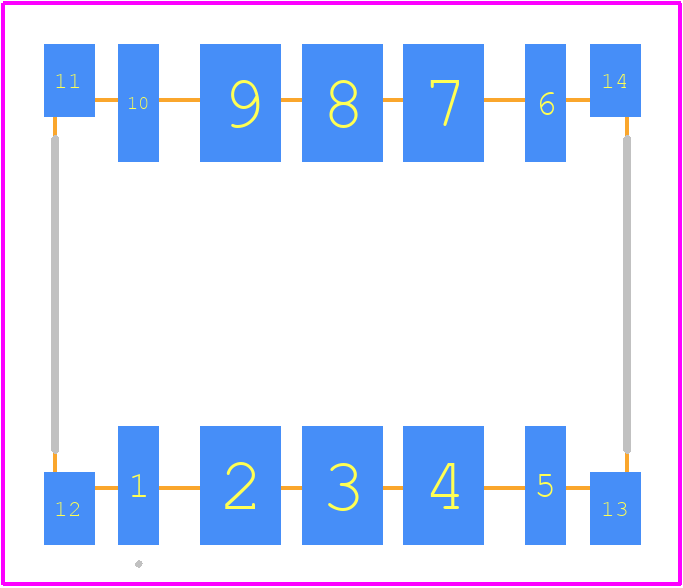

Use the download button to access the ARA210A03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA21,
or try a keyword search, such as RF Relays
