A good PCB layout for the ARA210A05 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Typically, this involves setting the VCC voltage to 5V, and the VEE voltage to -5V. Additionally, ensure that the input and output impedance are matched to the recommended values.
The maximum power dissipation of the ARA210A05 is 1.5W. To ensure it is not exceeded, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vee x Iee), and ensure it is below the maximum rating. Additionally, use a heat sink if necessary, and ensure good airflow around the device.
To troubleshoot issues with the ARA210A05, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the device is properly biased and that the input and output impedance are matched. Use an oscilloscope to check for oscillations or instability, and consult the datasheet for troubleshooting guidelines.
The ARA210A05 is rated for operation up to 85°C. However, for high-temperature environments above 85°C, special precautions are necessary. Ensure good airflow, use a heat sink, and consider derating the device's power dissipation. Consult the datasheet for specific guidelines on high-temperature operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA210A05 Overview

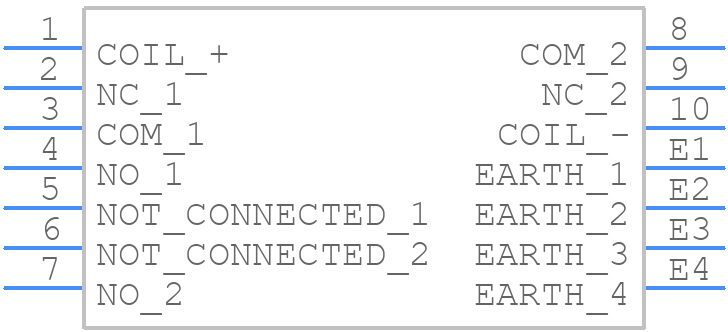

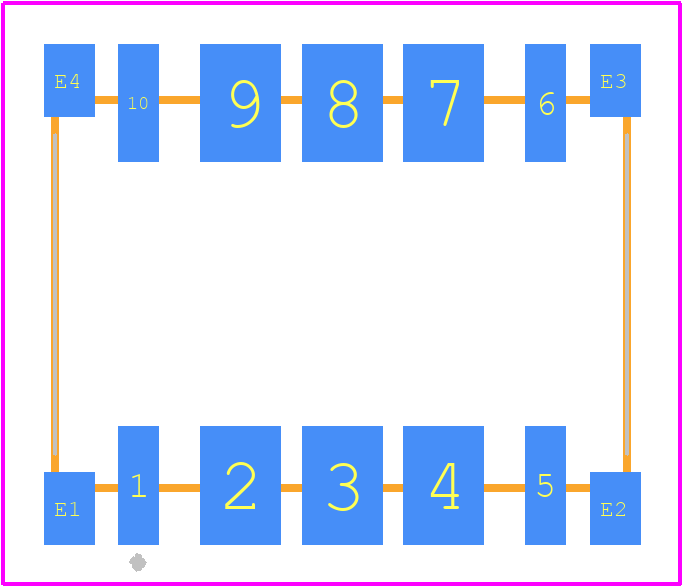

Use the download button to access the ARA210A05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA21,
or try a keyword search, such as RF Relays
