Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The ARA210A05X has a high power dissipation, so proper thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the component. The datasheet provides thermal resistance values to help with thermal design.
The ARA210A05X has an operating temperature range of -40°C to 150°C. However, the maximum junction temperature (Tj) should not exceed 150°C. Ensure that your design takes into account the thermal management and operating conditions to stay within this range.
The ARA210A05X is designed to withstand vibrations, but it's essential to follow Panasonic's guidelines for vibration testing and ensure that your design meets the required vibration specifications. Additionally, consider using a vibration-resistant mounting method and securing the component properly.
Follow Panasonic's recommended usage guidelines, storage conditions, and handling procedures to ensure the reliability and longevity of the ARA210A05X. Avoid exposing the component to excessive moisture, temperature, or mechanical stress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA210A05X Overview

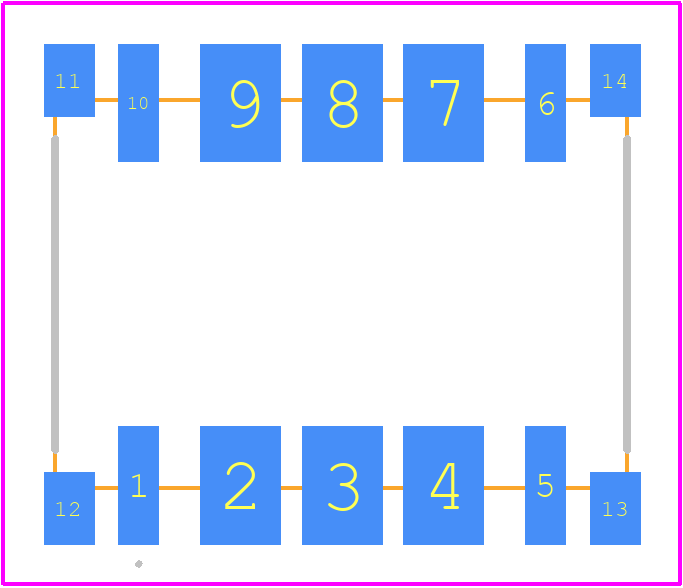

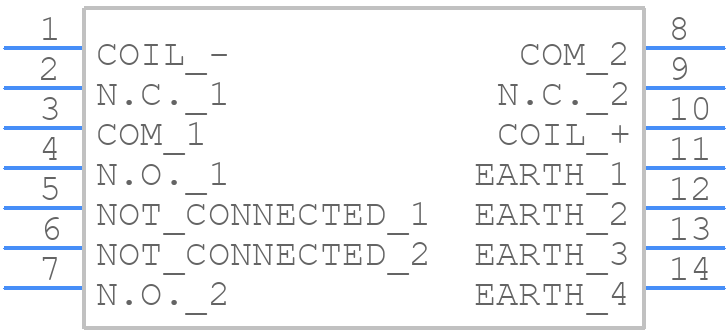

Use the download button to access the ARA210A05X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA21,
or try a keyword search, such as RF Relays
