A good PCB layout for the ARA210A12 should ensure that the input and output pins are separated as much as possible to minimize electromagnetic interference (EMI). Additionally, a solid ground plane and proper decoupling capacitors are essential for noise reduction and stability.
The choice of external components, such as resistors, capacitors, and inductors, depends on the specific application and operating frequency. Panasonic provides a recommended component list in the datasheet, but engineers should also consider factors like component tolerance, temperature coefficient, and parasitic effects.
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Engineers should consider the specific application's temperature requirements and potential thermal management strategies.
To ensure EMC, engineers should follow proper PCB design and layout guidelines, use shielding and filtering techniques, and consider the device's radiation pattern and susceptibility to external interference. Additionally, compliance with relevant EMC standards, such as CISPR and FCC, should be verified.
Common failure modes for the ARA210A12 include overheating, overvoltage, and ESD damage. Engineers can mitigate these risks by implementing proper thermal management, overvoltage protection, and ESD protection measures, such as heat sinks, voltage regulators, and TVS diodes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA210A12 Overview

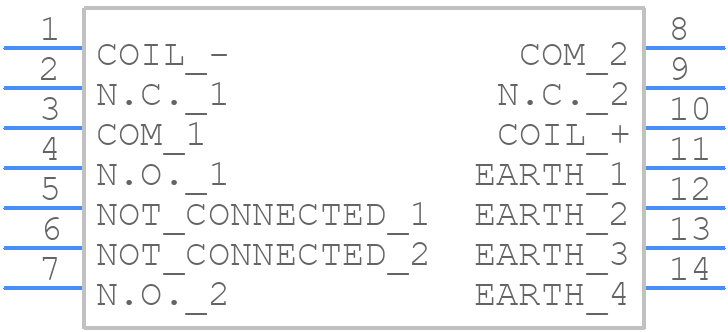

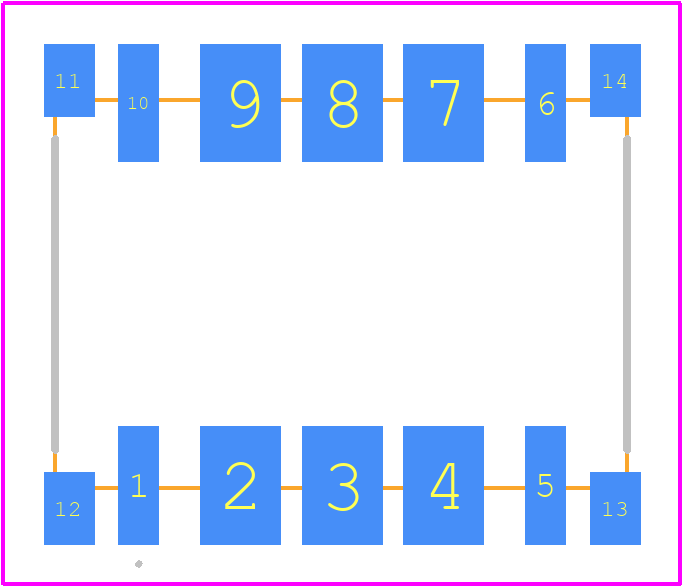

Use the download button to access the ARA210A12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA21,
or try a keyword search, such as RF Relays
