A good PCB layout for the ARA210A4H should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, ensure that the PCB material has a low dielectric constant to minimize signal reflections.
The ARA210A4H has a high power dissipation, so thermal management is crucial. Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good thermal contact between the device and the heat sink. Also, consider using thermal vias and a thermal pad on the PCB to improve heat dissipation.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the ARA210A4H within a temperature range of 0°C to 70°C.
The ARA210A4H is not designed for high-humidity environments. If you must operate the device in a humid environment, ensure that the PCB is properly coated with a moisture-resistant material, and consider using a conformal coating to protect the device from moisture ingress.
To troubleshoot issues with the ARA210A4H, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Verify that the input and output impedances are matched, and check for any signs of overheating. Use an oscilloscope to analyze the device's output and identify any signs of oscillation or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA210A4H Overview

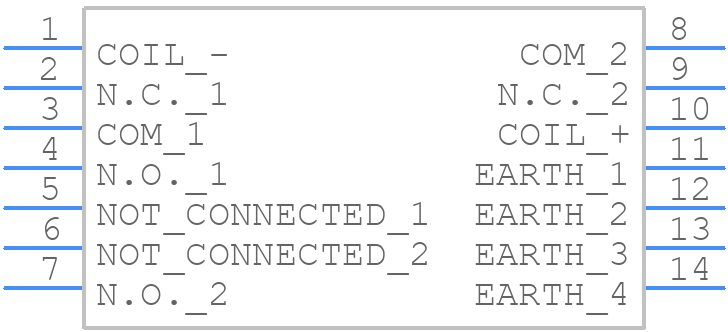

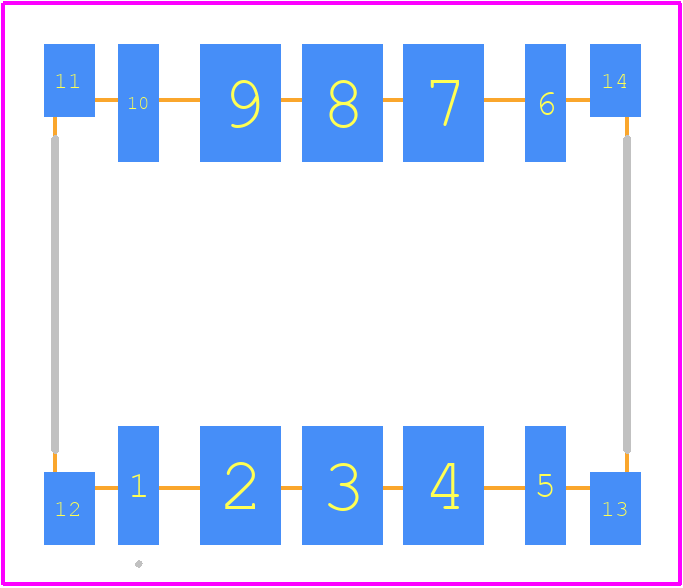

Use the download button to access the ARA210A4H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA21,
or try a keyword search, such as RF Relays
