Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The ARA220A05X has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines. Additionally, consider using thermal interface materials and designing a thermal management system.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with Panasonic or a qualified engineer to determine the optimal operating temperature range for your specific application.
The ARA220A05X is designed to withstand certain levels of vibration and shock. However, it's crucial to evaluate the device's performance in your specific application and consider additional mechanical support or design modifications to ensure reliability.
Consult with Panasonic or a qualified engineer to ensure the ARA220A05X meets your application's safety and regulatory requirements, such as UL, CE, or RoHS compliance. Additionally, perform thorough testing and validation to guarantee the device's performance and reliability in your specific use case.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA220A05X Overview

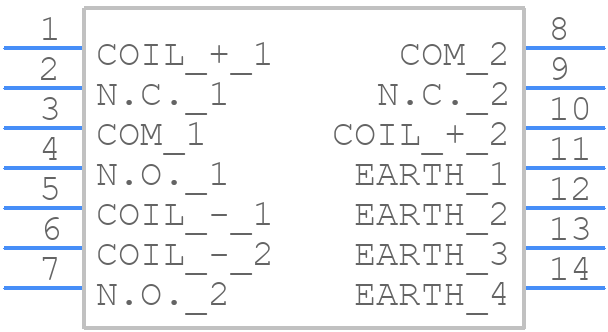

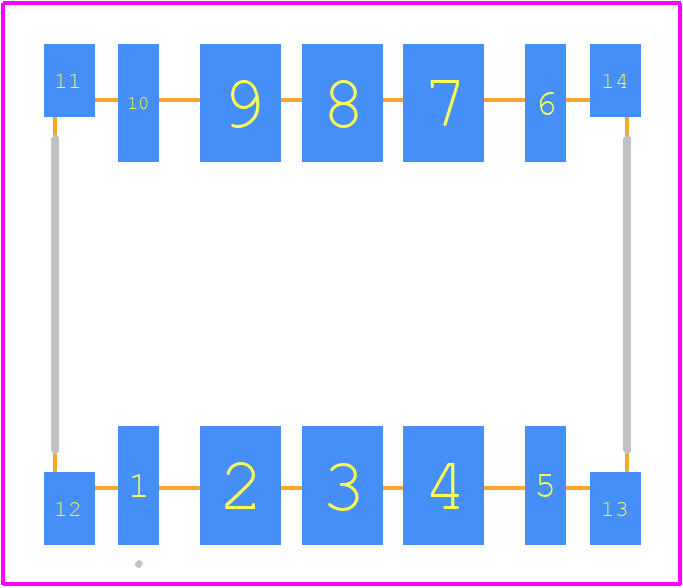

Use the download button to access the ARA220A05X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA22,
or try a keyword search, such as RF Relays
