Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the pins, and the PCB should be designed to minimize parasitic inductance and capacitance.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended voltage and current ratings.
Panasonic recommends using low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitors should be rated for the maximum operating voltage and should be placed as close as possible to the pins.
To protect the device from overvoltage and overcurrent conditions, it's recommended to use a voltage regulator or a surge protector at the input, and a current limiter or a fuse at the output. Additionally, the device should be operated within the recommended voltage and current ratings.
Panasonic recommends a soldering temperature of 260°C to 280°C, and a soldering time of 3 seconds to 5 seconds. The device should be soldered using a soldering iron with a temperature-controlled tip, and the soldering process should be done in a well-ventilated area.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARA220A12 Overview

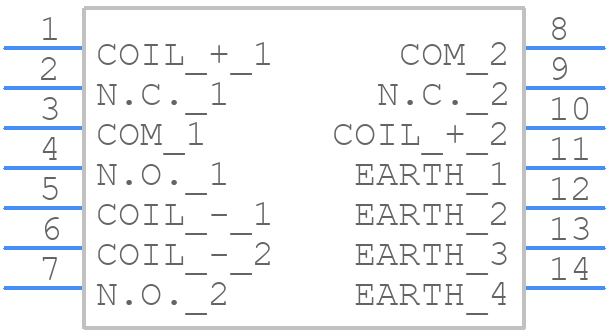

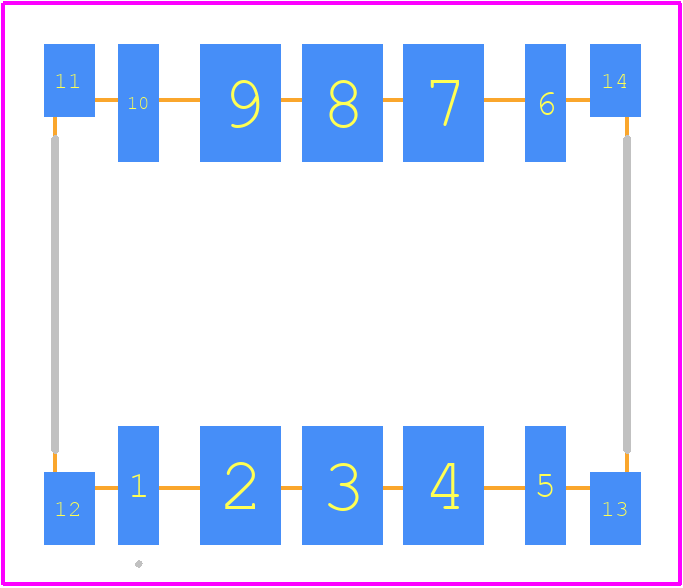

Use the download button to access the ARA220A12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARA22,
or try a keyword search, such as RF Relays
