ARE-10A12 - Panasonic

Description: High Frequency / RF Relays 2.6GHZ SPDT 12VDC 500MA 50 OHM SMD

Download ARE-10A12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ARE-10A12 model

Email notifications will be applied after download.

Send part feedback

Symbol

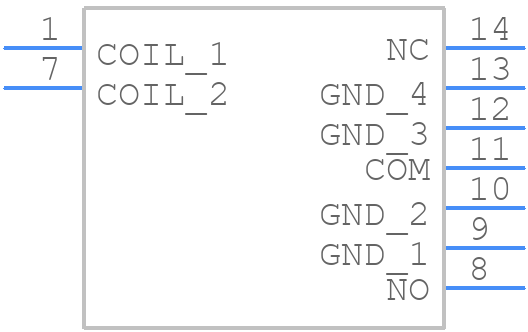

ARE-10A12 - Panasonic - PCB symbol

PCB Footprints

ARE-10A12 - Panasonic PCB footprint - Other - Other - ARE10A12-4

3D Models

ARE-10A12 - Panasonic - 3D model - Other - ARE10A12-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARE-10A12
Part Number ARE-10A12
Manufacturer Panasonic
Pin Count 9
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - ARE10A12-4
Released Date Jul 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ARE-10A12 Details

Manufacturer Part Number:
ARE-10A12
Manufacturer:
Panasonic Electronic Components
