ARG81800KESJSR - Allegro Microsystems

Description: Ultra Low Iq, Wide Input, 2.4Mhz, 1A Synchronous Buck Regulator

Download ARG81800KESJSR Model

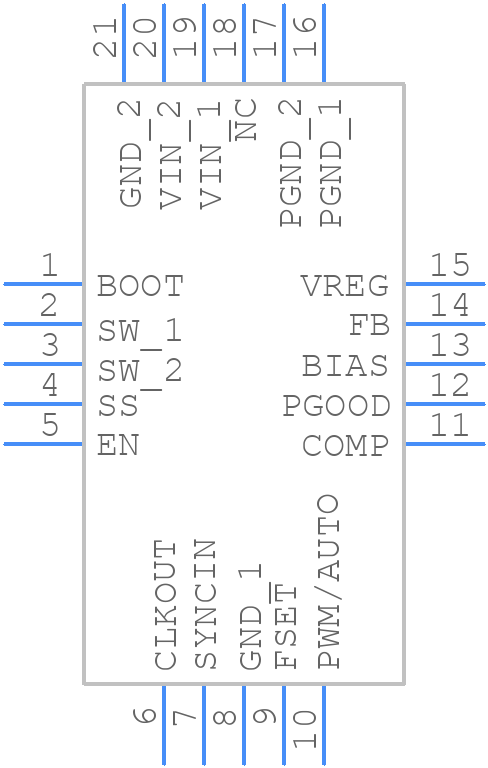

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ARG81800KESJSR - Allegro Microsystems PCB footprint - Other - Other - ES ,20-Pin QFN
click to zoom
3D Models
ARG81800KESJSR - Allegro Microsystems  - 3D model - Other - ES ,20-Pin QFN
click to zoom

ARG81800KESJSR Details

  • Manufacturer Part Number:

    ARG81800KESJSR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.15SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ARG81800KESJSR Frequently Asked Questions (FAQs)

  • Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sensitive analog signals away from the digital signals. A good layout practice is to use a star-ground configuration and to minimize the length of the traces.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout and routing guidelines, use a low-impedance sense resistor, and minimize the effect of external magnetic fields. Additionally, calibrate the device during production to account for any manufacturing variations.
  • Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to operate the device within the 4.5V to 5.5V range to ensure reliable operation and to prevent damage from voltage spikes or transients.
  • Yes, the ARG81800 can be used with a switching power supply, but it's essential to ensure that the power supply's output voltage ripple is within the specified limits (typically <100mV) to prevent noise and accuracy issues.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the output signals. Additionally, ensure that the PCB layout and routing are designed to minimize radiation and susceptibility to EMI.
