ARJ-169 - ABRACON

Description: 1 Port RJ45 with USB A Magjack Connector Through Hole 10/100 Base-T, AutoMDIX

Download ARJ-169 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

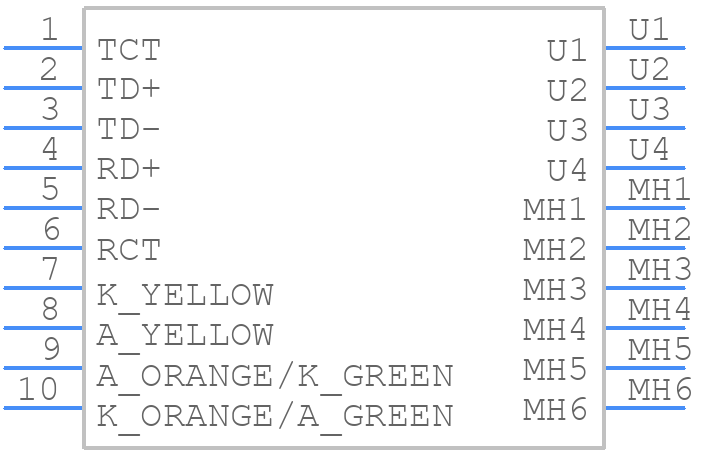

ARJ-169 - ABRACON - PCB symbol
click to zoom
PCB Footprints

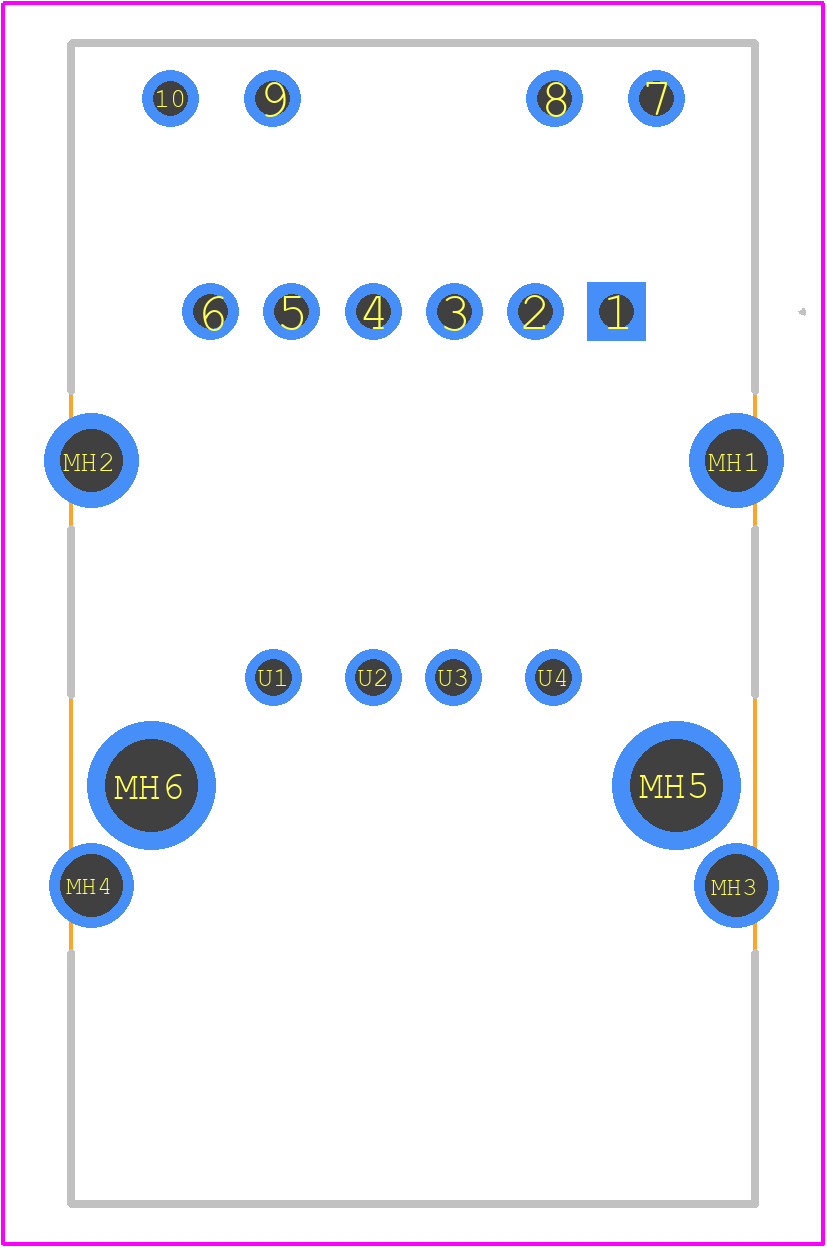

ARJ-169 - ABRACON PCB footprint - Other - Other - ARJ-169-6
click to zoom
3D Models
ARJ-169 - ABRACON - 3D model - Other - ARJ-169-6
click to zoom

ARJ-169 Details

  • Manufacturer Part Number:

    ARJ-169

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.822 inch

  • Body Depth:

    1.142 inch

  • Body Length:

    0.673 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ45+USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE-FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RJ45+USB

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    MOUNTING FLANGE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1+1

  • Number of Ports:

    2

  • Number of Rows Loaded:

    1+1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.128 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

ARJ-169 Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical layout with the crystal oscillator placed near the center of the PCB, with minimal routing and no vias under the device. A solid ground plane under the device is also recommended.
  • The ARJ-169 has built-in EMI and RFI shielding, and its metal package provides additional shielding. However, it's still important to follow proper PCB design and layout practices to minimize EMI and RFI effects.
  • The ARJ-169 is rated for operation from -40°C to +85°C, but it's recommended to derate the frequency tolerance and stability over the full temperature range.
  • Yes, the ARJ-169 is designed to withstand high-vibration and high-shock environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
  • The ARJ-169 has a high power supply rejection ratio (PSRR) and is designed to operate with a wide range of power supply voltages (1.8V to 3.3V). However, it's still important to follow proper power supply decoupling and filtering practices.
