ARJ14A-MASD-A-B-EMU2 - ABRACON

Description: 4 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX

Download ARJ14A-MASD-A-B-EMU2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ARJ14A-MASD-A-B-EMU2 - ABRACON - PCB symbol
click to zoom
PCB Footprints

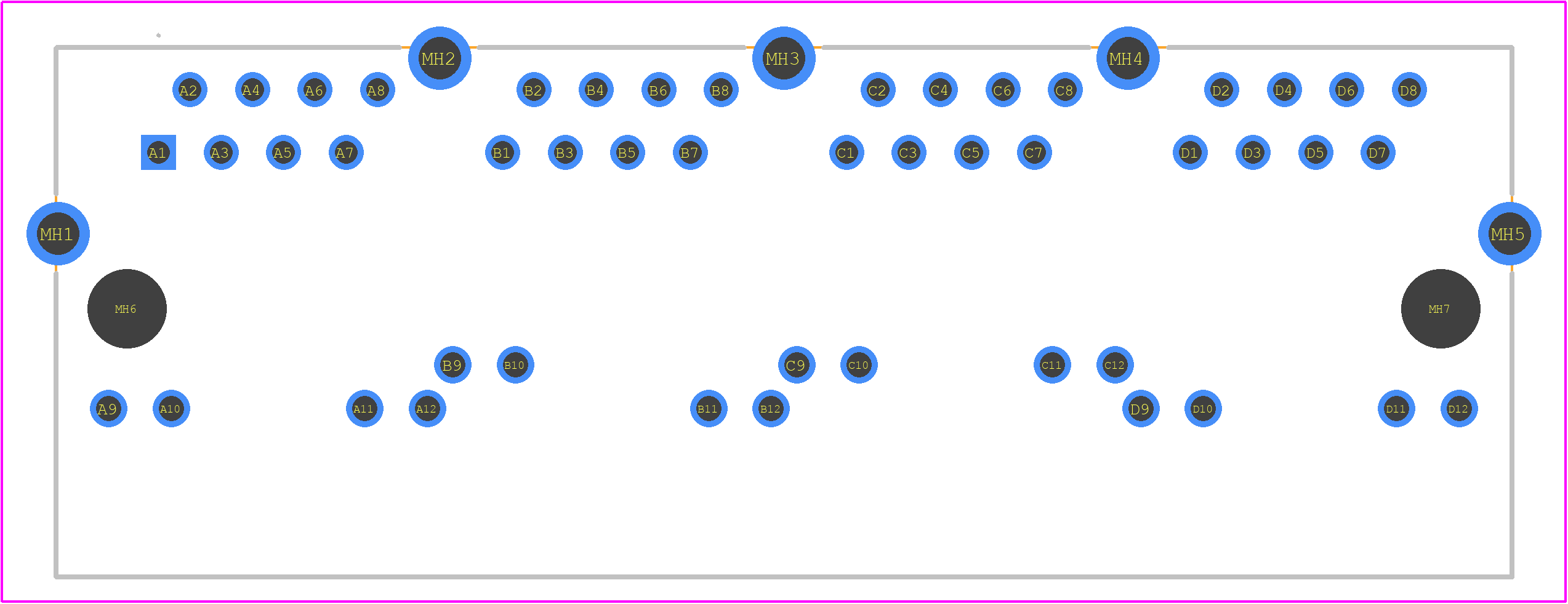

ARJ14A-MASD-A-B-EMU2 - ABRACON PCB footprint - Other - Other - ARJ14A-MASD-A-B-EMU2-4
click to zoom
3D Models
ARJ14A-MASD-A-B-EMU2 - ABRACON - 3D model - Other - ARJ14A-MASD-A-B-EMU2-4
click to zoom

ARJ14A-MASD-A-B-EMU2 Details

  • Manufacturer Part Number:

    ARJ14A-MASD-A-B-EMU2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • Additional Feature:

    4 PORT 8 POSITION EACH

  • Board Mounting Option:

    HOLE 0.126

  • Body Breadth:

    0.535 inch

  • Body Depth:

    0.846 inch

  • Body Length:

    2.328 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    MAGNETIC RJ45

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    MOUNTING FLANGE

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    4

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    70 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

ARJ14A-MASD-A-B-EMU2 Frequently Asked Questions (FAQs)

  • Abracon recommends following the IPC-7351B standard for PCB land patterns. The recommended land pattern for the ARJ14A-MASD-A-B-EMU2 can be found in the Abracon Application Note AN-03.
  • Abracon recommends following the J-STD-020D.1 standard for soldering. The recommended soldering profile for the ARJ14A-MASD-A-B-EMU2 can be found in the Abracon Application Note AN-04.
  • The maximum operating temperature range for the ARJ14A-MASD-A-B-EMU2 is -40°C to +85°C. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • Yes, the ARJ14A-MASD-A-B-EMU2 is compatible with lead-free soldering processes. Abracon ensures that all its products meet the RoHS and REACH directives.
  • Abracon recommends storing the ARJ14A-MASD-A-B-EMU2 in a dry, cool place with a relative humidity of 50% or less. The storage temperature should be between -20°C and +40°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARJ14A-MASD-A-B-EMU2 Overview

Use the download button to access the ARJ14A-MASD-A-B-EMU2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ14, or try a keyword search, such as Telecom and Datacom Connectors
