A good PCB layout for the ARJ204H involves keeping the antenna away from other components, using a solid ground plane, and minimizing the length of the transmission lines. It's also recommended to use a 50-ohm microstrip line and to avoid sharp corners or bends in the transmission lines.
To ensure proper matching, use a π-type matching circuit or a T-type matching circuit, and adjust the component values based on the antenna's impedance and the operating frequency. You can also use simulation software like ADS or AWR to optimize the matching circuit.
The ARJ204H can handle up to 2W of continuous power, but it's recommended to derate the power handling capability based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
To reduce the noise figure, use a high-quality, low-noise amplifier or LNA before the ARJ204H, and ensure that the input signal is properly filtered and matched. You can also use a noise-reducing technique like noise cancellation or noise shaping.
The recommended operating temperature range for the ARJ204H is -40°C to +85°C, but it's recommended to derate the operating temperature based on the specific application and environmental conditions to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ204H Overview

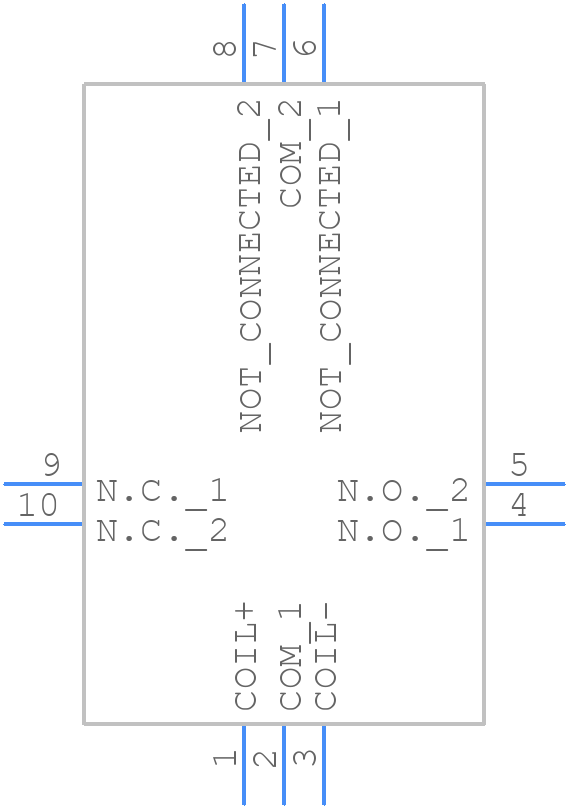

Use the download button to access the ARJ204H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ20,
or try a keyword search, such as RF Relays
