ARJ20A4HZ Frequently Asked Questions (FAQs)

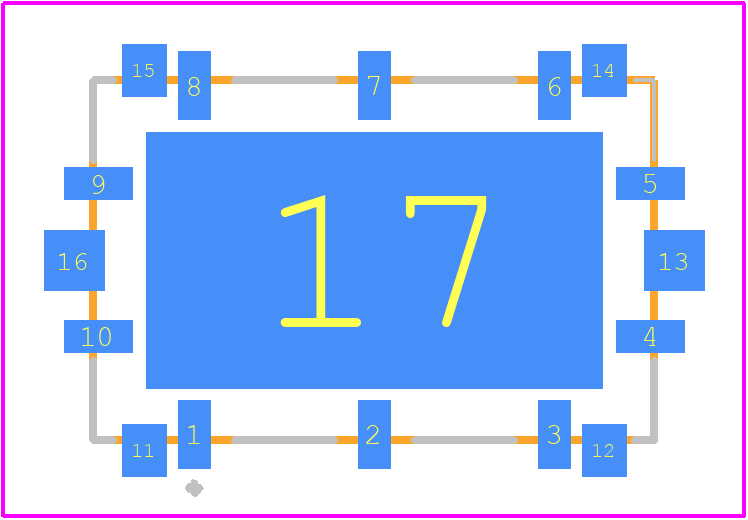

• What is the recommended PCB layout and land pattern for the ARJ20A4HZ?
  Panasonic provides a recommended PCB layout and land pattern in their application notes and datasheet. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting.
• What is the maximum switching frequency for the ARJ20A4HZ?
  The maximum switching frequency for the ARJ20A4HZ is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and prevent overheating.
• Can I use the ARJ20A4HZ in a high-temperature environment?
  The ARJ20A4HZ has an operating temperature range of -40°C to 85°C. While it can operate in high-temperature environments, it's essential to consider the relay's power dissipation and ensure proper heat sinking to prevent overheating.
• How do I ensure the relay's contacts are clean and free from contamination?
  To ensure clean contacts, it's recommended to handle the relay by the case, avoid touching the contacts, and store the relay in a clean, dry environment. If contamination occurs, use a soft brush or a lint-free cloth to clean the contacts.
