Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB should be designed to minimize electromagnetic interference (EMI).
The ARJ22A12 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. A thermal via or a thermal pad on the PCB can be used to dissipate heat. Additionally, a heat sink can be attached to the top of the IC to further improve thermal management.
The ARJ22A12 can tolerate a maximum voltage deviation of ±10% of the nominal input voltage. Exceeding this limit may affect the IC's performance, reliability, or even cause damage.
The ARJ22A12 is rated for operation up to 105°C. However, the IC's performance and reliability may degrade at high temperatures. It's recommended to derate the IC's output current and voltage according to the temperature derating curve provided in the datasheet.
To troubleshoot issues with the ARJ22A12, check the input voltage, output voltage, and output current. Verify that the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Also, check the thermal management and ensure that the IC is properly cooled.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ22A12 Overview

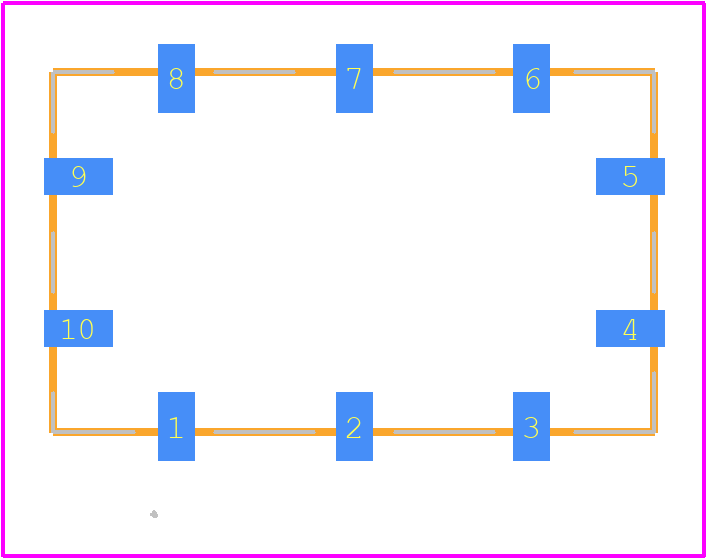

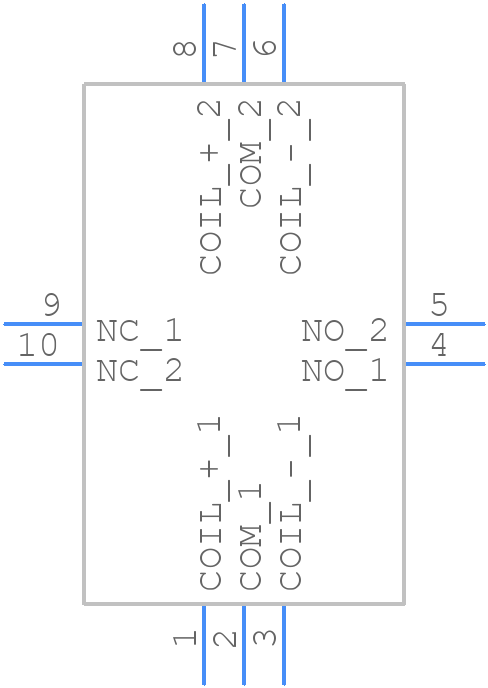

Use the download button to access the ARJ22A12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ22,
or try a keyword search, such as RF Relays
