Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting to reduce the inrush current.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this voltage drop can lead to contact welding or relay failure. Ensure that the relay is operated within the specified voltage range and that the contact resistance is within the recommended limits.
While the ARJ22A4HX relay has a high operating temperature range of -40°C to 125°C, it's essential to consider the derating factors and ensure that the relay is operated within the specified temperature range. Additionally, consider the relay's power dissipation and thermal management to prevent overheating.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ22A4HX Overview

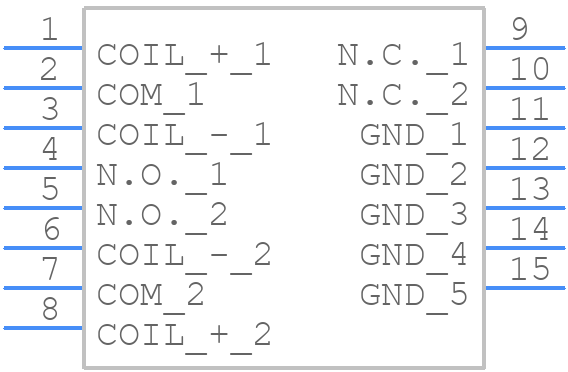

Use the download button to access the ARJ22A4HX schematic symbol, PCB footprint, and 3D model.
