Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting features.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV, depending on the specific application and relay type. Exceeding this voltage drop can lead to contact wear and reduced relay lifespan.
To ensure reliable relay operation in high-temperature environments, consider using relays with high-temperature ratings, such as the ARJ22A4HZ, which has an operating temperature range of -40°C to 125°C. Additionally, ensure proper heat dissipation, use thermal management techniques, and follow Panasonic's guidelines for high-temperature applications.
Panasonic recommends soldering the ARJ22A4HZ relay at a temperature of 260°C to 280°C for 3 seconds to 5 seconds, with a peak temperature of 300°C. It's essential to follow these guidelines to prevent damage to the relay or its components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ22A4HZ Overview

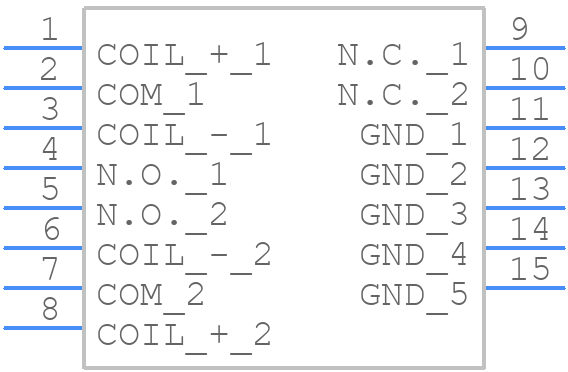

Use the download button to access the ARJ22A4HZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ22,
or try a keyword search, such as RF Relays
