ARJC01-111002AR - ABRACON

Description: Modular Connectors / Ethernet Connectors

Download ARJC01-111002AR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

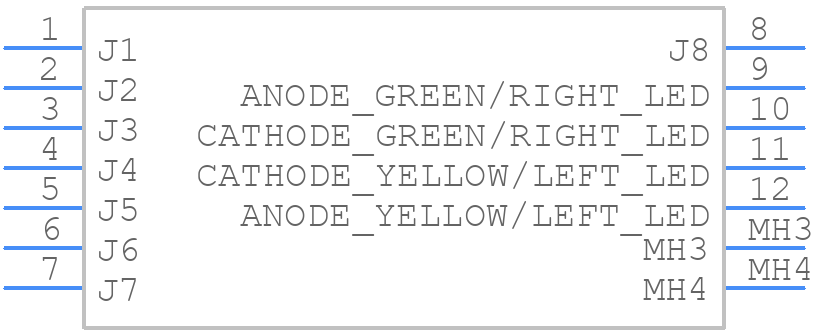

ARJC01-111002AR - ABRACON - PCB symbol
click to zoom
PCB Footprints

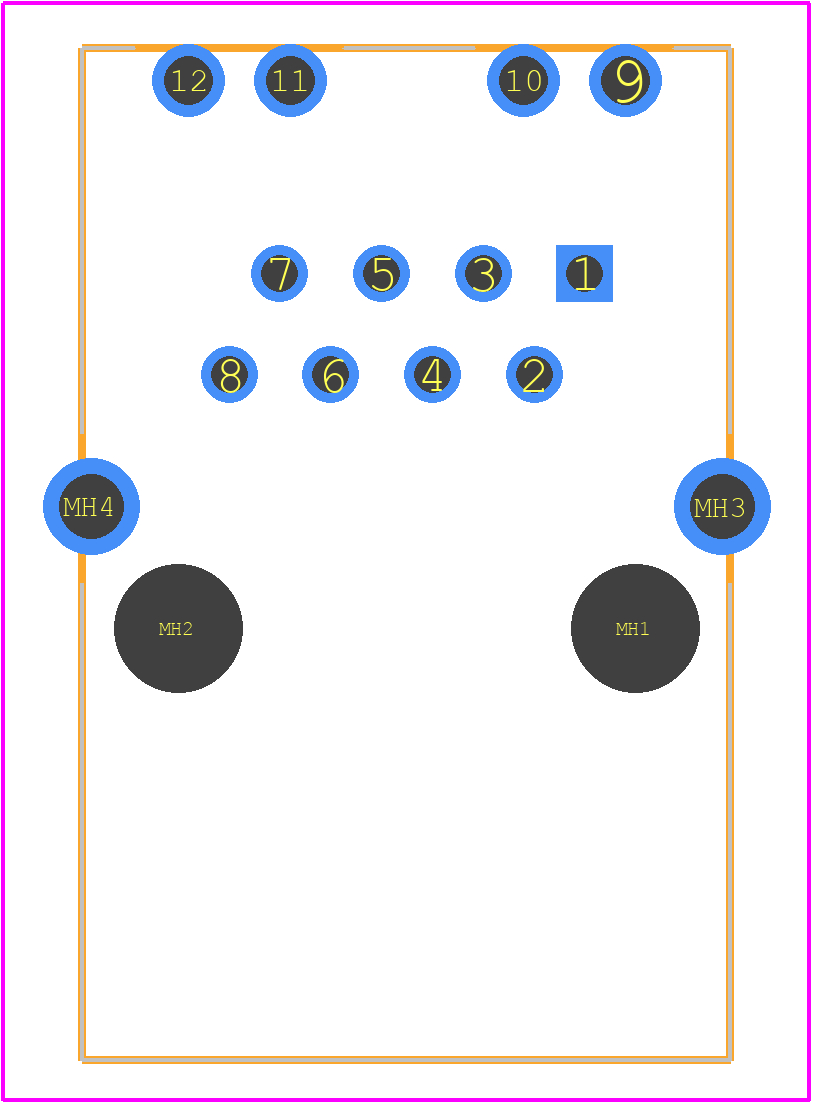

ARJC01-111002AR - ABRACON PCB footprint - Other - Other - ARJC01-111002AR-2
click to zoom
3D Models
ARJC01-111002AR - ABRACON - 3D model - Other - ARJC01-111002AR-2
click to zoom

ARJC01-111002AR Details

  • Manufacturer Part Number:

    ARJC01-111002AR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.533 inch

  • Body Depth:

    0.996 inch

  • Body Length:

    0.638 inch

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    MODULAR RJ45

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    MOUNTING FLANGE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

ARJC01-111002AR Frequently Asked Questions (FAQs)

  • Abracon recommends storing ARJC01-111002AR in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 85°C and humidity below 80%.
  • Yes, ARJC01-111002AR is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure reliable performance.
  • Yes, ARJC01-111002AR is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The maximum operating temperature range for ARJC01-111002AR is -40°C to 85°C. Operating outside this range may affect the component's performance and reliability.
  • While ARJC01-111002AR is designed to operate in a wide range of environments, it's recommended to take precautions when using it in high-humidity environments. Consider using conformal coating or other protective measures to ensure reliability.
