ARJM11A3-009-AB-ER2-T footprint, schematic symbol and 3D model by ABRACON

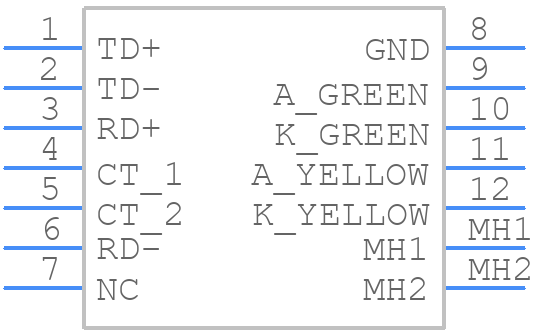

Symbol

click to zoom

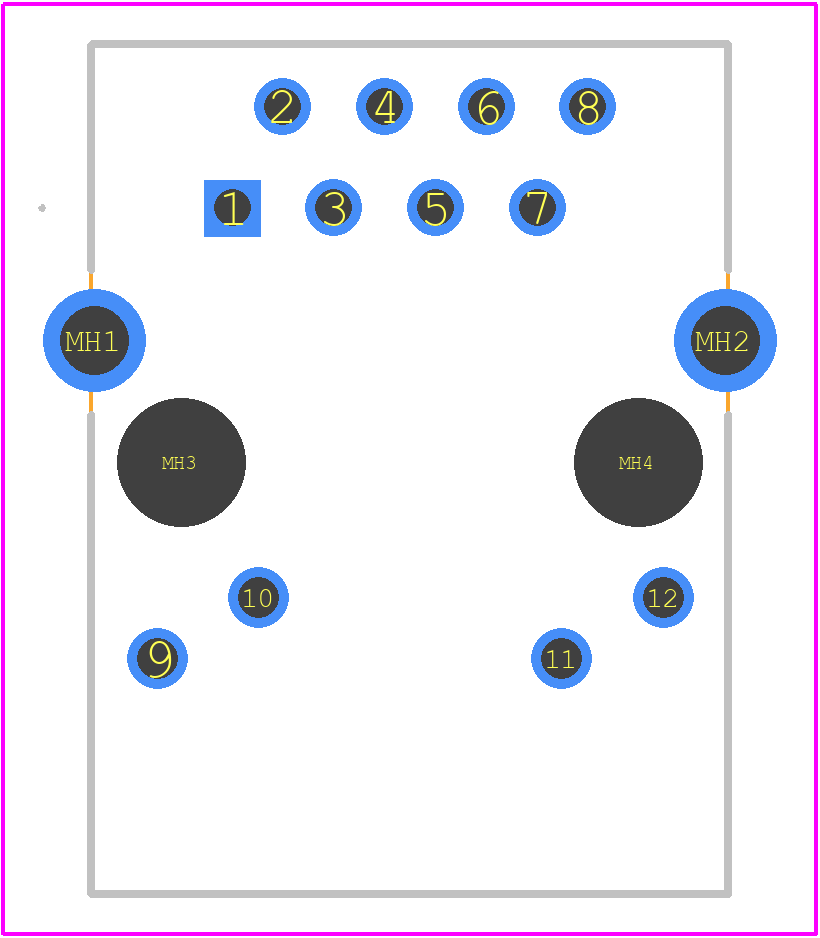

PCB Footprints

ARJM11A3-009-AB-ER2-T - ABRACON PCB footprint - Other - Other - ARJM11A3-009-AB-ER2-T-4

click to zoom

3D Models

ARJM11A3-009-AB-ER2-T - ABRACON - 3D model - Other - ARJM11A3-009-AB-ER2-T-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARJM11A3-009-AB-ER2-T
Part Number ARJM11A3-009-AB-ER2-T
Manufacturer ABRACON
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - ARJM11A3-009-AB-ER2-T-4
Released Date Dec 19, 2021
Last Modified Date Aug 4, 2023 1:17 PM UTC
Pinout / Pin List Click Here (Member Only)

ARJM11A3-009-AB-ER2-T Details

Manufacturer Part Number:
ARJM11A3-009-AB-ER2-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Abracon Corporation
YTEOL:
7.5
Board Mounting Option:
PEG
Body Breadth:
0.535 inch
Body Depth:
0.839 inch
Body Length:
0.626 inch
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
TELCOM, MODULAR
Empty Shell:
NO
Filter Feature:
YES
JESD-609 Code:
e4
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
6u inch
Polarization Key:
POLARIZED HOUSING
Terminal Length:
0.126 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8

ARJM11A3-009-AB-ER2-T Frequently Asked Questions (FAQs)

The recommended storage condition for the ARJM11A3-009-AB-ER2-T is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 85°C and humidity below 80%.
Yes, the ARJM11A3-009-AB-ER2-T is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering.
Yes, the ARJM11A3-009-AB-ER2-T is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
The typical lead time for delivery of the ARJM11A3-009-AB-ER2-T varies depending on the region and availability, but it's usually around 4-6 weeks. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.
The ARJM11A3-009-AB-ER2-T is rated for operation up to 85°C, but it's recommended to derate the operating temperature according to the manufacturer's guidelines to ensure reliable performance and longevity.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ARJM11A3-009-AB-ER2-T Overview

Use the download button to access the ARJM11A3-009-AB-ER2-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ARJM1, or try a keyword search, such as Telecom and Datacom Connectors
