ARJM11B1-009-NN-EW2 footprint, schematic symbol and 3D model by ABRACON

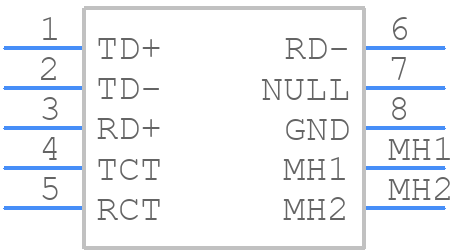

Symbol

click to zoom

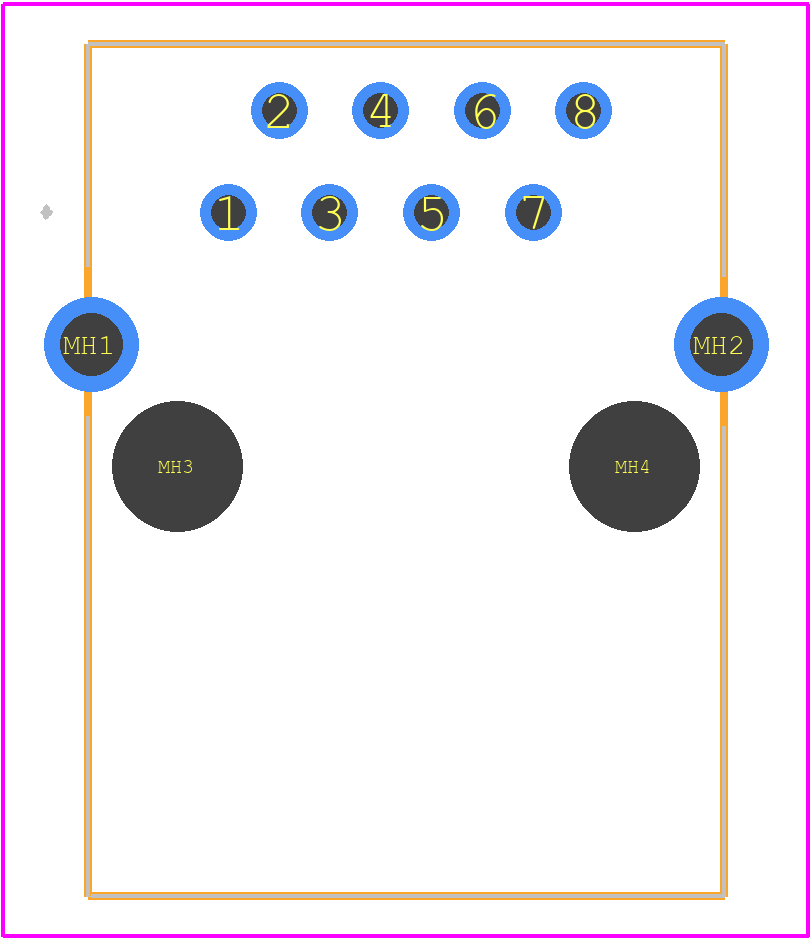

PCB Footprints

ARJM11B1-009-NN-EW2 - ABRACON PCB footprint - Other - Other - ARJM11B1-009-NN-EW2-2

click to zoom

3D Models

ARJM11B1-009-NN-EW2 - ABRACON - 3D model - Other - ARJM11B1-009-NN-EW2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARJM11B1-009-NN-EW2
Part Number ARJM11B1-009-NN-EW2
Manufacturer ABRACON
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - ARJM11B1-009-NN-EW2-2
Released Date Feb 12, 2020
Last Modified Date Sep 17, 2025 7:38 AM UTC
Pinout / Pin List Click Here (Member Only)

ARJM11B1-009-NN-EW2 Details

Manufacturer Part Number:
ARJM11B1-009-NN-EW2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.5
Additional Feature:
SHEILDED
Board Mounting Option:
HOLE 0.128
Body Breadth:
0.535 inch
Body Depth:
0.839 inch
Body Length:
0.626 inch
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
MODULAR RJ45
Empty Shell:
NO
Filter Feature:
YES
Insulator Color:
BLACK
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
JESD-609 Code:
e4
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Option 2:
MOUNTING FLANGE
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
6u inch
Polarization Key:
POLARIZED HOUSING
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
BRASS
Terminal Length:
0.12 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

ARJM11B1-009-NN-EW2 Frequently Asked Questions (FAQs)

The recommended land pattern for the ARJM11B1-009-NN-EW2 can be found in the Abracon Corporation's application note AN-01, which provides detailed guidelines for PCB layout and assembly.
The ARJM11B1-009-NN-EW2 is rated for operation up to 125°C, but it's recommended to derate the frequency and voltage according to the temperature derating curve provided in the datasheet. For extreme temperature applications, it's recommended to consult with Abracon's application engineers.
The recommended soldering profile for the ARJM11B1-009-NN-EW2 is a peak reflow temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. It's recommended to follow the IPC-J-STD-020D standard for soldering and assembly.
The ARJM11B1-009-NN-EW2 is an industrial-grade component, but it's not specifically designed for automotive applications. For automotive applications, it's recommended to use Abracon's AEC-Q200 qualified components, such as the ARJM11B1-009-NN-EW2-A, which meets the stringent requirements of the automotive industry.
The lead time and minimum order quantity for the ARJM11B1-009-NN-EW2 vary depending on the region and distribution channel. It's recommended to check with authorized distributors or Abracon's sales representatives for the most up-to-date information.

Trust Checks

Expert Contribution

System Verified

Community Approved

ARJM11B1-009-NN-EW2 Overview

Use the download button to access the ARJM11B1-009-NN-EW2 schematic symbol, PCB footprint, and 3D model.
