Abracon recommends following the IPC-7351B standard for PCB land patterns. A specific land pattern recommendation can be found in the Abracon Application Note AN-03, which provides detailed guidelines for PCB design and layout.
To ensure the ARJM11B1-502-NN-EW2 operates within its specified temperature range, follow proper thermal management practices, such as providing adequate heat dissipation, using thermal vias, and avoiding thermal hotspots on the PCB. Additionally, consider using thermal interface materials and heat sinks if necessary.
Abracon recommends following the JEDEC J-STD-020D.1 standard for soldering profiles. A specific soldering profile recommendation can be found in the Abracon Application Note AN-01, which provides detailed guidelines for soldering and assembly.
Yes, the ARJM11B1-502-NN-EW2 is designed to withstand vibrations up to 20G. However, it's essential to follow proper mounting and assembly techniques to ensure the component remains securely attached to the PCB. Additionally, consider using vibration-dampening materials or potting compounds to further reduce the risk of component failure.
To prevent ESD damage, follow proper ESD handling and storage procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Ensure that all personnel handling the component are properly grounded, and consider using ESD-protective devices or circuits in the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJM11B1-502-NN-EW2 Overview

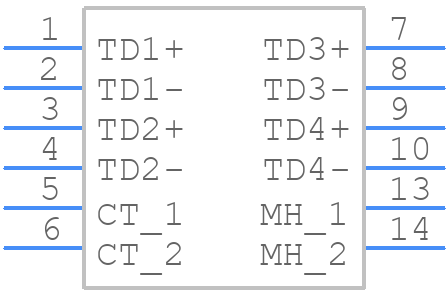

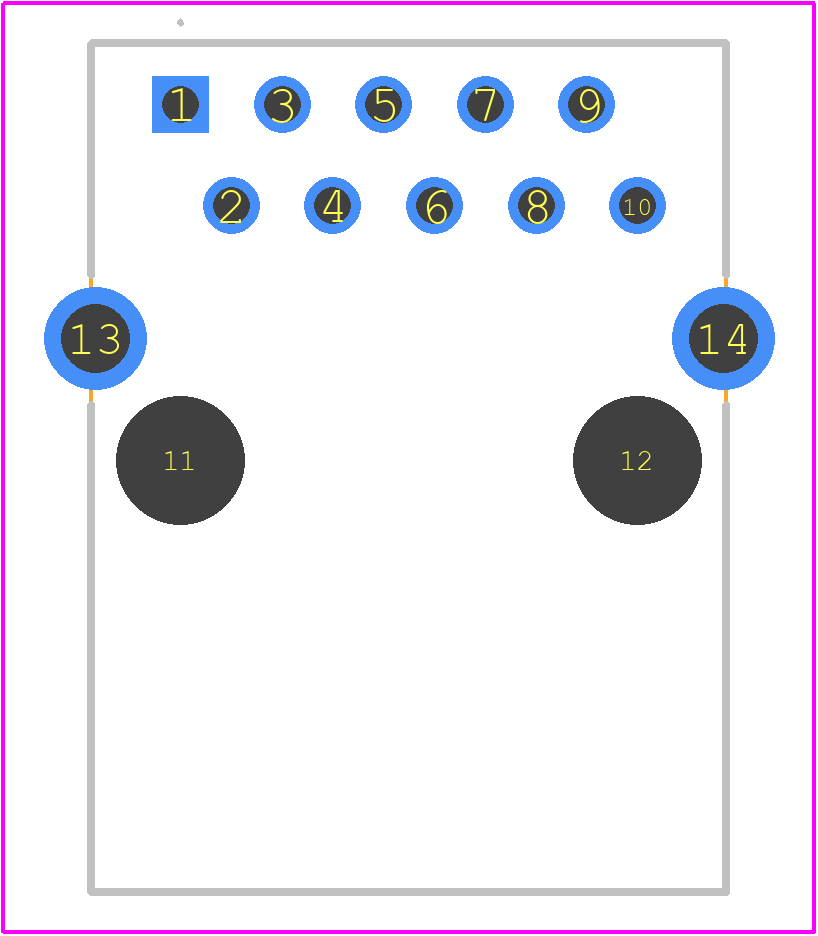

Use the download button to access the ARJM11B1-502-NN-EW2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJM1,
or try a keyword search, such as Telecom and Datacom Connectors
