Description:4-Side scalable arrays; Optional evaluation boards for are available for easy access to signals; Variety of formats ranging from 2×2 to 12×12; Minimal deadspace at the edges allowing tiling on all sides to allow the creation to still larger detection areas; Each array has either a multi-way connector or BGA on the reverse for access to all signals; The pixel signals can either be read out individually for imaging applications, or summed by the user to create a large area, single-channel sensor; The pixel-le
The recommended PCB layout and thermal management for the ARRAYC-60035-4P-BGA can be found in the onsemi application note AND9005/D, which provides guidelines for thermal design, PCB layout, and component placement to ensure optimal performance and reliability.
The thermal shutdown feature in the ARRAYC-60035-4P-BGA is designed to protect the device from overheating. To handle this feature, ensure that your design includes a thermal monitoring circuit to detect when the device reaches its thermal shutdown temperature (typically 150°C). You can then use this signal to shut down the device or take other corrective action to prevent damage.
The recommended soldering process for the BGA package of the ARRAYC-60035-4P-BGA is a reflow soldering process with a peak temperature of 240°C to 250°C. It's essential to follow the onsemi recommended soldering profile and guidelines to ensure reliable connections and prevent damage to the device.
To ensure EMC in your design, follow the onsemi guidelines for electromagnetic interference (EMI) reduction, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, ensure that your design meets the relevant EMC standards and regulations for your application.
The recommended power sequencing and supply voltage for the ARRAYC-60035-4P-BGA can be found in the datasheet. Typically, the device requires a single 3.3V or 5V power supply, and the power sequencing should ensure that the voltage rails are powered up and down in a specific order to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARRAYC-60035-4P-BGA Overview

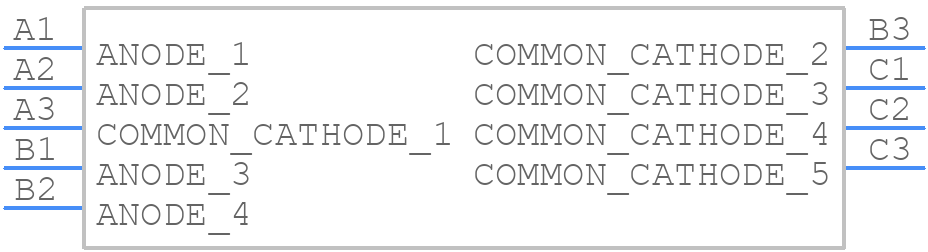

Use the download button to access the ARRAYC-60035-4P-BGA schematic symbol, PCB footprint, and 3D model.
