Panasonic recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip line design for the RF signal traces to minimize signal loss and radiation. A detailed layout guide is available in the Panasonic application note AN54484.
The ARS1124 requires calibration to compensate for variations in the radar signal due to temperature, voltage, and manufacturing tolerances. Panasonic provides a calibration procedure in the datasheet, which involves measuring the radar signal amplitude and phase at multiple frequencies and temperatures, and storing the calibration data in the device's internal memory.
While the datasheet specifies an operating temperature range of -20°C to 85°C, Panasonic recommends derating the device's performance at temperatures above 70°C to ensure reliable operation. Additionally, the device's calibration data may need to be updated for optimal performance at extreme temperatures.
Yes, the ARS1124's radar sensing capabilities can be adapted for other applications that require detection of movement or presence. However, Panasonic recommends consulting with their application engineers to determine the feasibility and optimal implementation of such applications.
Panasonic recommends using a combination of ceramic and electrolytic capacitors to decouple the power supply lines, with a minimum of 10uF capacitance per power pin. A detailed decoupling scheme is provided in the Panasonic application note AN54484.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS1124 Overview

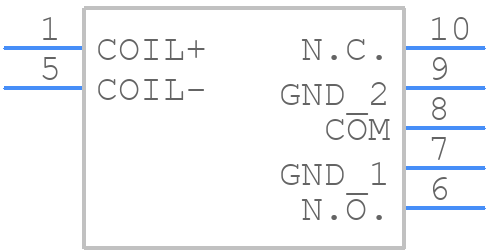

Use the download button to access the ARS1124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS11,
or try a keyword search, such as RF Relays
