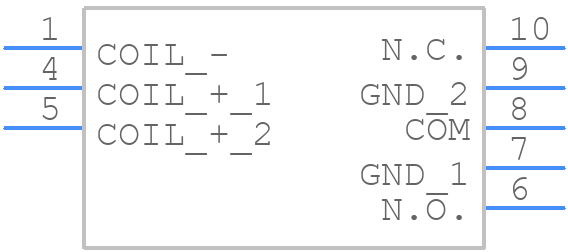

ARS1212 - Panasonic

ARS1212 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ARS1212?
  Panasonic provides a recommended PCB layout in the application note AN54191, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
• How do I handle the thermal management of the ARS1212?
  The ARS1212 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
• What is the maximum operating temperature range for the ARS1212?
  The ARS1212 has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure that the device is operated within the recommended temperature range to prevent damage or degradation.
• How do I program the ARS1212?
  The ARS1212 can be programmed using the Panasonic-provided software development kit (SDK) and a dedicated programmer or a microcontroller with a serial interface. The SDK includes documentation, sample code, and tools for programming and debugging the device.
• What is the typical current consumption of the ARS1212?
  The typical current consumption of the ARS1212 varies depending on the operating mode and frequency. According to the datasheet, the typical current consumption is around 10mA in continuous mode and 2mA in standby mode. However, this can vary depending on the specific application and usage.
