ARS1412 - Panasonic

Description: RELAY RF SPDT 500MA 12V

Download ARS1412 Model

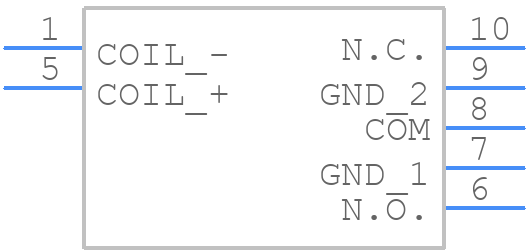

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ARS1412 - Panasonic PCB footprint - Other - Other - ARS_PTH_7_50
click to zoom
3D Models
ARS1412 - Panasonic  - 3D model - Other - ARS_PTH_7_50
click to zoom

ARS1412 Details

  • Manufacturer Part Number:

    ARS1412

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    8.6 mm

  • Body Height:

    7.2 mm

  • Body Length or Diameter:

    14 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    .5A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    1000000 Cycle(s)

  • Input Power-Max:

    1 W

  • Insertion Loss-Max:

    0.35 dB

  • Isolation-Max:

    35 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    14mm x 8.6mm x 7.2mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    6 ms

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

  • VSWR:

    1.4

ARS1412 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 10uF capacitor between VCC and GND for decoupling.
  • Use a stable power supply with a low ripple voltage (<100mV). Ensure the power supply can provide the required current (typically 10mA). Add a 10uF capacitor between VCC and GND for decoupling.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and lifespan.
  • Use ESD protection devices (e.g., TVS diodes) on the input lines. Ensure the PCB design includes ESD protection features, such as a ground plane and ESD-sensitive component placement.
  • The recommended clock frequency is 10MHz to 40MHz. However, the device can operate up to 50MHz with reduced performance and increased power consumption.
