Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this value can lead to contact welding or other reliability issues. Ensure that the relay is operated within the specified voltage range and that the contact resistance is within the recommended limits.
While the relay is rated for operation up to 85°C, it's essential to consider the derating factors and ensure that the relay is operated within the specified temperature range. Additionally, consider using a relay with a higher temperature rating or implementing cooling measures to prevent overheating.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS14Y4HZ Overview

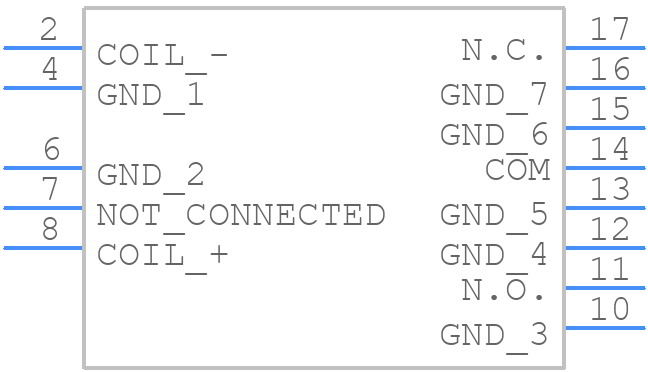

Use the download button to access the ARS14Y4HZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS14,
or try a keyword search, such as RF Relays
